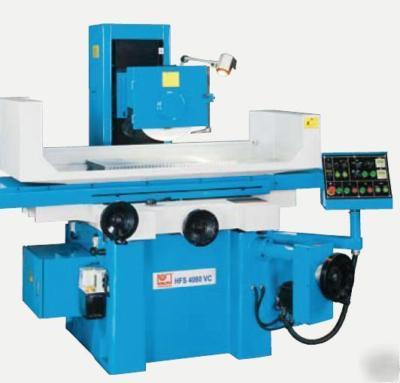

Knuth surface grinder hfs 15.7"X40"
Surface Grinder HFS 40100 15.7"x40"
designed for continuous operation at
maximum speed, very quiet operation,
maximum accuracy and minimal heat
accmulation ensure optimum machining
grinding spindle runs in maintenance-free
preloaded precision angular ball bearings
rapid feed for setup to desired work height
hydraulic longitudinal table movement on
double table V-guide in transverse table,
V-guide and flat guides in longitudinal table
Table guideways are hardened, ground,
and PTFE (polytetrafuorethylene) counter
laminated - ensuring maximum wear
high table load capacity for heavy parts
external hydraulic unit ensures high
automatic central lubrication
spindle center to table distance 22.8
work table dimensions 13 x 39
hydr. table movement 0-1000 /min
scale ring division Y-axis 0.0016
scale ring division Z-axis 0.000085
grinding wheel dimensions 13 x 1.25 x 5
overall dimensions 104 x 67 x 75
