Hp 35670A dynamic signal analyzer + full loaded options

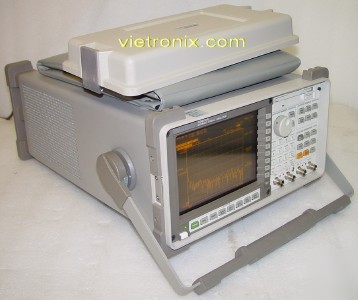

HP 35670A Dynamic Signal Analyzer + Full Loaded Options
Unit Included: Unit installed the following option: 1D0, 1D1, 1D2, 1D3, 1D4, 1C2, AY6, UFF, UFC
The 35670A is a versatile FFT analyzer with built in source for general spectrum and network analysis, and for octave, order, and correlation analysis. Rugged and portable, it is ideal for field work, yet it has the performance and functionality required for demanding R&D applications.
The built in source with optional analysis features optimize the instrument for analyzing and troubleshooting noise, vibration and acoustic problems, evaluating and solving rotating machinery problems, and characterizing control systems parameters.
102.4kHz at 1 channel, 51.2 kHz at 2 channel, 25.6 kHz at 4 channel
100, 200, 400, 800 and 1600 lines of resolution
90 dB dynamic range, 130 dB in swept-sine mode
Source: Random, Burst random, Periodic chirp, Burst chirp, Pink noise, Sine, Arbitrary waveform
Measurements: Linear, Cross, and Power Spectrum, Power Spectral Density, Frequency Response, Coherence, THD, harmonic power, Time Waveform, Auto-correlation, Cross-Correlation, Histogram, PDF, CDF
Octave analysis with triggered waterfall display
Tachometer input and order tracking with orbit diagram
3.5-inch floppy disk drive
