Haas horizontal machining center model EC400, 2004

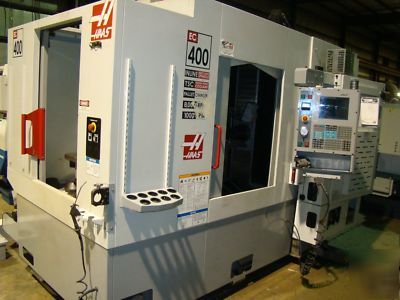

Haas EC400 Horizontal Machining Center #51268, 2004
Horizontal Machining Center. With 8,000 rpm spindle, pallet changer, through spindle coolant, inline direct drive spindle. Software 13.07F. Control 12.05. Motion time 3,909 hours. Spindle time 4,048 hours.
XYZ-20 Inch x 20 Inch x 20 Inch, 20hp, 24+1 Side Mounted Automatic Tool Changer, Inline Direct Drive Spindle, TSC Through-Spindle Coolant, Servo-Driven Dual Pallet Changer, 400mm Each, Pallet Changer Load Capacity 1000 Pounds, 1-Degree Indexing, 8000rpm, 1000 IPM, 40 Taper Spindle, Tool Limitations; Weight 12 Pounds, Gauge Length 12 Inch,Tool Diameter 6 Inch, 95-Gallon (360 liter) Coolant System And Triple-Auger Chip Removal, CNC Controls, Manual, HMS Axis, Full Load 40 Amps, Largest Load 35 Amps, Interrupting Capacity 10,000 Amps, 208/230v, 3ph, 50/60hz And (4) Steel Tombstones.
Click To Play Video See technician Doug Johansen run the Haas!
