Greenlee textron digital multimeter dm-210

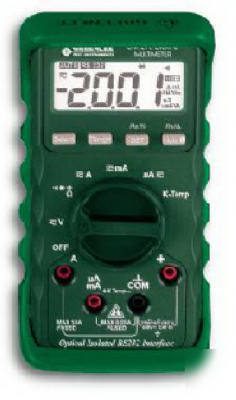

GreenLee Textron Digital Multimeter DM-210 - 764656
GreenLee Textron Digital Multimeter DM-210
GreenLee Digital Multimeter DM-210
Autoranging for convenient operation, non-contact voltage detection, and to save you time.
Data hold to capture measurements.
Auto power off and low battery indicator.
RS-232 capable, may be connected to a PC for extended measurement capability with optional optically isolated interface DMSC-2.
Relative offset display mode to see relative changes in measurements.
Frequency, temperature, and capacitance measurements.
Includes two 1.5V AAA batteries, test leads, bead temperature probe (DM-210 only, 400 degrees F / 204 degrees C max
Voltage Measurement: ACV - 250.0mV; 2.500, 25.00, 250.0, 750V DCV - 250.0mV; 2.500, 25.00, 250.0, 1000V
Amperage Measurement: 250.0, 2500 A; 25.00, 250.0mA; 2.500, 10.00A
Resistance: 250.0ohms; 2.500, 25.00, 250.0kohms; 2.500, 25.00Mohms
AC Detective Voltage Detection Range: 30V-500V+
Capacitance: 2.500, 25.00, 250.0nF; 2.500, 25.000 F
Temperature: K type, -4 F to 572 F (-20 C to 300 C)
Measurement Category: Cat III, 600V; Cat II, 750V AC/1000V DC
Manufacturers suggested retail price: $139.99
