Yaesu vx-3R ultra-compact dual band radio VX3R

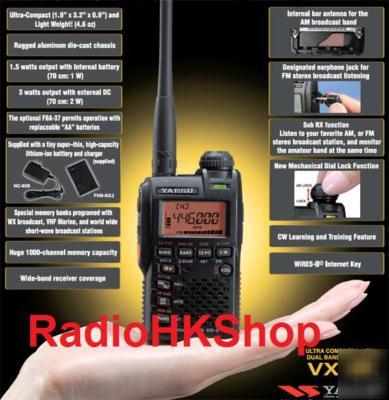

This is the Yaesu VX-3R Ultra-Compact Dual-Band FM Transceiver.
- 3.7v Battery 1000mah FNB-82l x 1
- NC-85 Charger transformer x 1
The new ultra-compact VX-3R 2m/70cm FM HT Transceiver is loaded with convenience features. In addition to top quality performance on the 2m and 70cm, you will also be able to enjoy stereo FM and improved AM broadcast band reception with our new Internal Bar Antenna.
3 V for 10 dB SN (0.5-1.8 MHz, AM Radio)
3 V for 10 dB SN (0.5-30 MHz, AM)
1 V TYP for 12 dB SINAD (54-76 MHz, NFM)
1.5 V TYP for 12 dB SINAD (76-108 MHz, FM Radio)
0.2 V for 12 dB SINAD (137-140 MHz, NFM)
0.16 V for 12 dB SINAD (140-150 MHz, NFM)
0.2 V for 12 dB SINAD (150-174 MHz, NFM)
1 V TYP for 12 dB SINAD (174-225 MHz, NFM)
0.2 V for 12 dB SINAD (350-400 MHz, NFM)
0.18 V for 12 dB SINAD (400-470 MHz, NFM)
1.5 V for 12 dB SINAD (470-540 MHz, WFM)
3 V TYP for 12 dB SINAD (540-800 MHz, WFM)
1.5 V TYP for 12 dB SINAD (800-999 MHz, NFM)
NFM, AM: 12 kHz/35 kHz ( 6 dB / 60 dB)
WFM : 200 kHz / 300 kHz ( 6 dB/ 20 dB)
5/9/8.33/10/12.5/15/20/25/50/100 kHz
1st: 130 kHz (AM Radio/FM Radio)
Nominal: 3.7 V DC, Negative Ground
Operating: 3.5 ~ 7 V, Negative Ground ( EXT DC Jack)
5.0 ~ 7 V, Negative Ground ( EXT DC Jack with Charging)
50 mW @ 8 W for 10 % THD (@ 3.7 V)
100 mW @8 W for 10 % THD (@ 6 V)
AM Radio/FM Radio: Single-Conversion Superheterodyne
1.9 x 3.2 x 0.9 (47 x 81 x 23 mm) (W/O knob & antenna)
4.6 oz (130 g) With FNB-82LI & antenna
1.5 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI 144 MHz)
