> Usb avrisp mkii atmel clone +avr dip programming module
Usb avrisp mkii atmel clone +avr dip programming module
Click for view in large resolution "AVR DIP Programmer"
Jumper selection on AVR DIP Programmer board

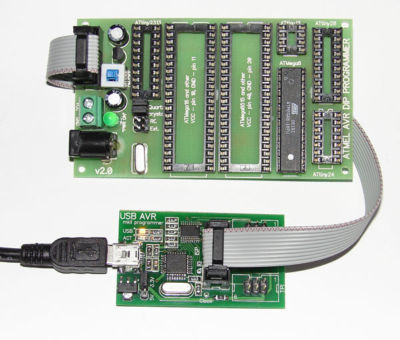

USB AVR mkII programmer (AVRISP mkII compatible clone) with AVR DIP Programming module
This AVR programmer is LUFA powered which is open source software that emulates AVRISP-MKII functionality
Module AVR DIP PROGRAMMER this is extension to AVRISP programmer. It allows programming ATMEL AVR microcontrollers in DIP case. The module is intended for the developers in which arrangements on a PCB there is no connector ISP, does not remain free pins of the controller for connecting of the ISP interface, or these pins cannot be used on what or other reason. The module supports all ATMEL AVR microcontrollers in DIP case, having ISP interface
The AVR DIP PROGRAMMER allows to choose type of clocking of the controller (external clocking, external RC circuit or the crystal-stabilized oscillator of 8 MHz), that enables to program any controller irrespective of his FUSE bits. The choice is carried out by adjustment of jumpers on corresponding places.
With programmer "USB AVR mkII programmer" (see photo) an external power supply it it is not necessary: +3.3V or +5V delivered through a ISP cable from programmer.
However with another type of programmer there is a necessity in an external power supply for "AVR DIP Programmer". For this purpose on a PCB of the module AVR DIP PROGRAMMER there are 2 types of power supply connectors: standard power supply connector with diameter of the central contact electrode 2,1mm (+ a feed on the central contact electrode, - a feed on the external contact electrode) and the terminal-block with 2 pins (polarity of voltage is specified on a PCB). The module ATMEL AVR DIP PROGRAMMER have the built in voltage stabilizer +5V. A range of input power supply voltage +6V.. +15V
For more comfortable work with the module ATMEL AVR DIP PROGRAMMER added button, which is switching-off a power, and a green LED for the status of POWER ( PWR ON ) .
AVR DIP Programmer support all AVR controllers in DIP case
