2007 samatic HCT5000H tool & cutter grinder cnc 5 axis

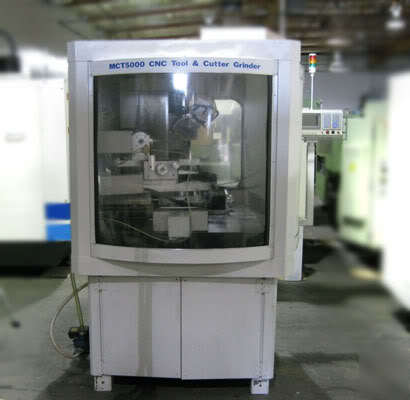

2007 Samatic MCT5000H Tool & Cutter Grinder
Machine Control Technology's MCT5000 5 axis CNC Universal Tool & Cutter Grinders is the most flexible and cost effective CNC machine for standard and form tool manufacturing, regrinding, and parts grinding industries. The MCT5000 CNC Tool & Cutter Grinder allows you to do spiral flute, straight flute, primary & secondary relieves, end & radius, counter-sink relief and step O.D. grinding from a blank, or regrinding tool with built-in software. The machine is capable of producing or regrinding a finished tool in one continuing operations. And the G code programming is also provided for the flexibilities of your custom tool grinding.
The machine body of the MCT5000 Tool & Cutter Grinder is a fully enclosed grinding machine. It is built on a strong steel base with a 6" thick granite on top for dampening. All X, Y, Z axis are built with precision linear guide ways and ball-screws for providing smoother control and long lasting machine life. The machine has two rotary axes. The C axis is mounted on top of the Y axis and carries the X, U, V, and A axis. The C axis is capable of swiveling within 230 deg. around the rotary center for radius, ball nose and left/right hand rotary or flat tool grinding without sacrificing tool grinding length. The machine is also equipped with 3/4 horse power coolant pump, a 30 gallons coolant tank and a filter system.
The Machine Control Technology's MCT5000 series 5 axis CNC Tool & Cutter Grinders have built-in macro-programs for end mil, reamer; counter-sink step-drill, step O.D. and engraving tools with spiral or straight flute grinding, Just fill in the tool grinding information, no expensive grinding software are needed to run the machine. Custom built-in special programs are also our advantage over the other expansive CNC tool grinders, only Machine Control Technology is flexible enough to do that. Besides all these built-in software, the MCT5000 Tool & Cutter grinders are also allowing you to write your own programs with G-code in edit mode
The programmable reload pointer is also a standard feature designed as a 3 dimensional stop for locating the reloading tool to the starting position without the automatic probe. When the machine finishes grinding the current tool moved to the packing position, then you unload and load another tool, press the "Enter key, a reload pointer will move to the reload position to tell you where you should lineup and lock your reloaded tool. Then press "Enter" to start another cycle.
* 5 Axis CNC Tool & Cutter Grinder
* 3-D Touch Probe with software for rework $ 3,900
* EXTENDED 20" table with tail stock $ 1,200
* 7 AXIS Machine w/ 5 AXIS Control.
* Easy to use, just fill in tool and wheel information and your ready to go
* Standard 5C air collet closer
* Built-in complete tool grinding macro-programs
* 5 hp variable speed grinding spindle
* G code on/off line programming form-tool grinding
* Built-in 30 gallons 1/2 hp coolant system.
3,500 Variable control up to 10,000 RPM
$105,000!! without the add ons!
Just 2 years old the machine is in great working condition.
OPEN-BED FREIGHT WITH RIGGING-
* Items over 3000 lbs. less than 12000 lbs. will be sent via open-bed freight. Open-bed freight trucks allow the item to secured to the truck bed. For an open-bed freight quote please email us with: item #, name, zip code, and destination type [commercial or residential]. We forward your emails to a freight broker who networks with all the major freight companies to find you the best rate.
* These items exceed our forklift's capacity. Machinery movers will contracted to remove the item from our showroom and load it on to an open-bed freight truck. You will be charged a minimum rigging fee of $200.
* MACHINE DIMENSIONS: ?x?x?H (inches) approximate.
* MACHINE WEIGHT: ? lbs. approximate.
