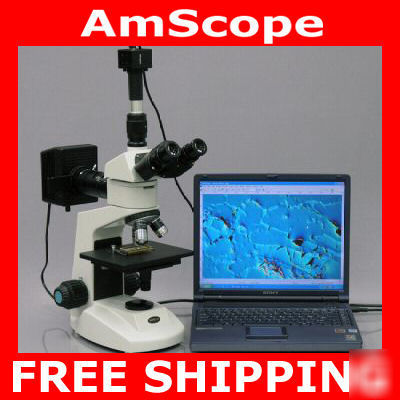

Trinocular metallurgical compound microscope +3M camera
Brand Name: AmScope Model No: ME320T-PH-3M Retail Value: $3,000
* A professional grade metallurgical metallographic microscope with polarizing features and 3.0MP specially designed parfocal USB camera for metallurgical applications!
* EPI-illumination reflected light microscopy system
* Captures microscope images and shows live video on your PC screen
* Displays 3.0 MegaPixel full-screen clear images with high resolution
* Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
* Measures accurately lengths, angles and areas across microscope images
* Edits microscope images on your computer in the same way as PhotoShop dose
* Built-in reduction lens for the possible largest field of view
* User-friendly sophisticated software, manual and step-by-step user's instructions
* Easy USB connection and installation
* Six levels of magnification, 40X, 64X,100X, 160X, 400X & 640X
* Three DIN standard Plan objectives included
* Two sets of widefield eyepiece included
* Two filter frames and one blue EPI-illumination filter included
* 7-0"x 5-3/4" (180x145mm) extremely large mechanical stage with stain resistant finish
* Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
* Eyepieces: WF10X (18mm Field of View), WF16X (11mm)
* Objectives: Plan Achromatic 4X (0.1 NA), 10X (0.25 NA), 40X (Spring, 0.65 NA)
* Stage Dimensions: 7-0"x 5-3/4" (180x145mm)
* Illumination: halogen lamp, 6V/20W
* Power Supply: 90V-240V wide band, CE certified
* One Trinocular Compensation-Free Compound Microscope Head
* One Microscope Body with Frame, Base and 90V-240V Wide Band EPI Illumination System
* Two Pairs of Widefield Eyepieces: WF10X & WF16X
* Three Plan Achromatic Metallurgical Objectives, 4X, 10X & 40X
* Two Filter Frames and One Blue Filter
* One 3.0MP USB2.0 Digital Image System
