Okuma crown V4018 vertical machining center year 2000

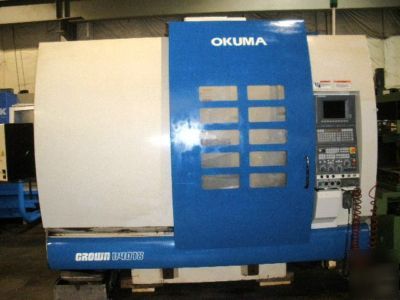

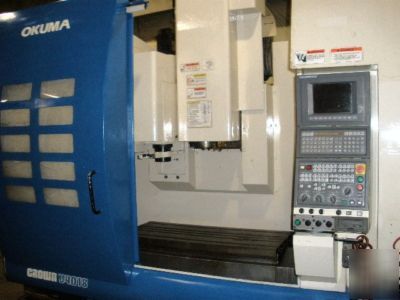

Okuma Crown Vertical Machining Center

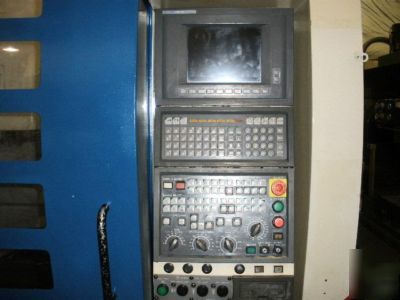

Control: Okuma OSP-U10M with CRT screen

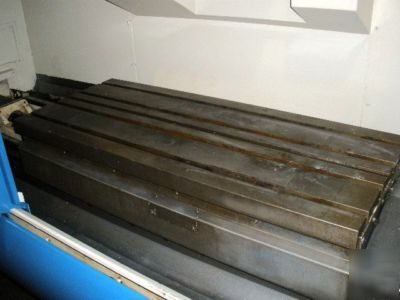

* Table working surface, F-B x L-R: 20 x 48"
* Maximum weight on table: 1,540 Lbs
* Minimum/Maximum distance, spindle nose to table: 6.3" - 24.02"
* Distance from table surface to floor: 31.5"
* Longitudinal table travel (X): 40"
* Cross travel of column (Y): 18"

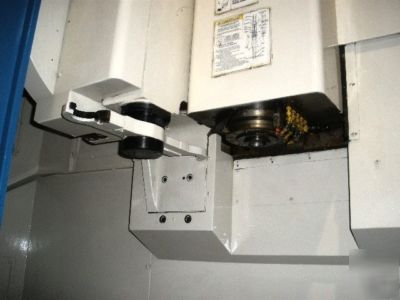

* Vertical travel of spindle head (Z): 17.72"
* Spindle speed, infinitely variable: 8,000 RPM
* Rapid traverse rate, X & Y axes: 787 IPM
* Rapid travers rate, Z axis: 591 IPM

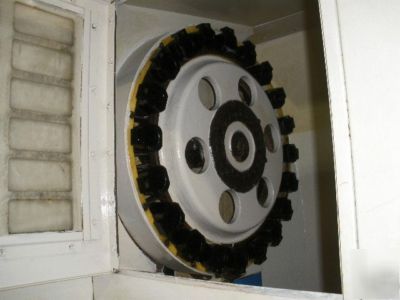

* Number of stations in ATC: 20
* ATC tool selection: Random
* Maximum tool diameter: 5.98"
* Maximum tool diameter, with adjacent tool: 3.94"
* Maximum tool length: 26.4"
* Maximum tool weight: 15.75"
* OSP U-10M 3-Axis CNC controls with hand-held MPG and RS-232 port
* Low pressure coolant through spindle
* Programmable chip air blast system
* Air blast spindle cleaning for tool change

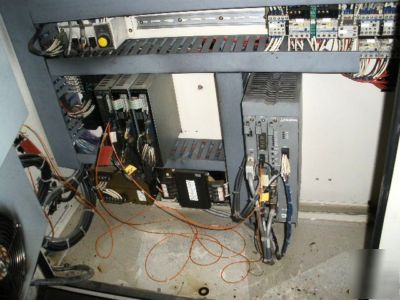

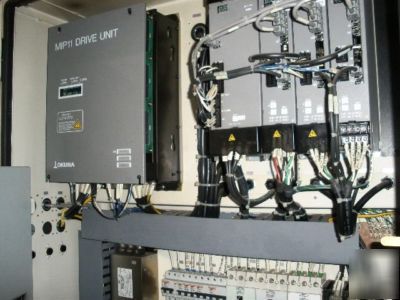

* 10/15 HP (Continuous duty/30 min) spindle drive motor and electrical controls

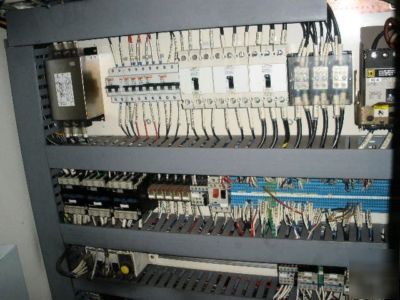

* Machine is wired for 3/60/220 Volts
Approximate floor space: 118"L x 160"W x 106"H
Approximate weight: 15,400 pounds
