New 50 ft davis bury-flex 50 ohm antenna coax cable
50 feet of DAVIS BURY-FLEX 50 OHM COAX
Davis Bury-Flex was developed with these goals in mind........To be competitive in durability, have similar attenuation specs to LMR 400, Belden 9913, 9914, and 9913F, to be Truly buriable, flexible for rotator loops, and to serve HF through the microwave bands.
They have succeeded and offer a quality, reasonable priced coax cable that no one can't afford to try!

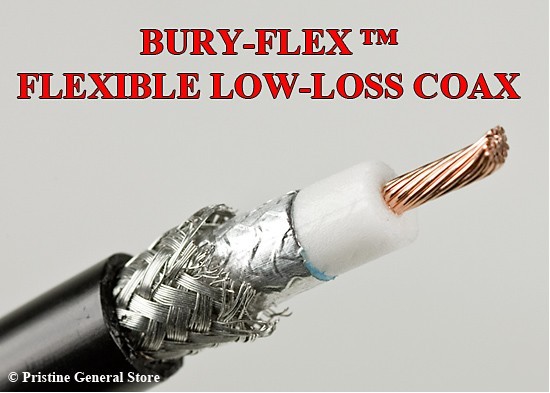

Bury-Flex is a 50 ohm cable with double shield yielding 100% shield coverage, consisting of a 97% braid shield which is tinned for ease of soldering and corrosion protection, plus a bonded foil shield for added moisture protection. With a loss factor of 1.5 dB/100 ft @ 100 MHz, it is very competitive with 9913F and LMR 400.
Bury-Flex uses standard PL-259's or the standard N connector.
By combining a gas-injected foamed dielectric with a dual foil and braid shield construction, Bury-Flex provides the electrical and performance characteristics found in the more expensive 400-series coaxes as well as typical air dielectric type cables.
The Polyethylene (PE) jacket of Bury-Flex provides improved UV resistance and abrasion resistance compared to typical PVC jackets, significantly extending the life of your cable. Even if you don't need to bury it, it's a wise choice as this coax is known to last for 20+ years!
* Multiple quanitiy orders will be in one continuous length. Example = order a quanity of 2 you will get 100 feet of one continuous length of Davis Bury Flex Coax.
* Conductor: 9.5 AWG Stranded Bare Copper
* Shield 1: Bonded Foil (100% Coverage)
* Shield 2: Tinned Copper Braid (97% Coverage)
* Jacket: UV Resistant PE (Polyethylene)
* Overall Nominal Diameter: .405 in. Nom. OD.
* Cable Weight: .1 lbs/ft nom.
Custom lengths are available. If you don't see the length you need...Contact me for a price quote!
