3.5INCH 320X240 lcd, low cost one, chilin

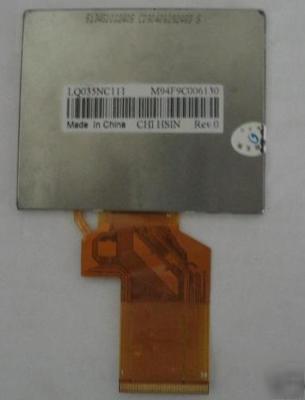

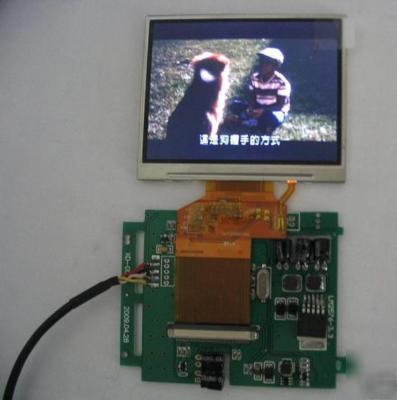

Chilin LQ035NC111, Low cost LCD, 320x240, Hot offer 25USD/pcs, Orignal New, A grade, A/D board with AV input is available, 25USD/pcs
This technical specification applies to 3.45 color TFT-LCD panel. The 3.45 color TFT-LCD
panel is designed for GPS, camcorder, digital camera application and other electronic products
which require high quality flat panel displays.
High Resolution: 230,400 Dots (320 RGB x 240). LQ035NC111 is a transmissive type color
active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as
switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a
Screen size 3.45(Diagonal) inch
Display Format 320 RGB x 240 Dot
Active area 70.08(H) x 52.56(V) mm
Pixel Configuration RGB-Stripe
Outline dimension 76.9(W) x 63.9(H) x 3.3(D) mm
Display Mode Normally white/Transmissive
Input Interface Digital 24-bit RGB/SERIAL
View Angle direction 6 o clock
Temperature Range Storage -30~80 _
