> Tektronix P7380SMA differential probe to 8GHZ
Tektronix P7380SMA differential probe to 8GHZ
Tektronix P7380SMA Differential Probe to 8GHz
Differential SMA Probes are designed for measuring differential signals in a 50 signaling environment, providing the ability to convert from a differential SMA signal path to a single oscilloscope input channel
* >8.0 GHz Bandwidth (P7380SMA only, typical)

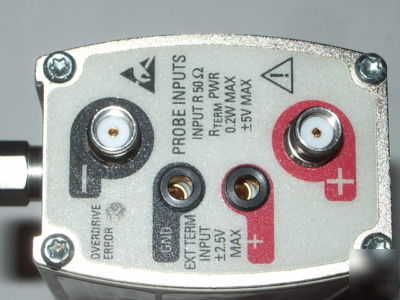

* 50 Termination Network, Differential SMA Inputs
* Industry-leading Differential Return Loss and VSWR
* High-bandwidth Differential Amplifier with Excellent CMRR
* Internal Termination Voltage Generator Controlled by Internal by Oscilloscope*1, External Source, or Automatically by the Probe
* Phase-matched SMA Cables (38 inch length, <1 ps skew)with Cable Loss Compensation
* Switchable Gain for Extended Dynamic Range
* Auxiliary (inverted) Output for use with Spectrum Analyzers, Network Analyzers, or as a Clock Recovery Trigger Source
* Validation and Compliance Testing of Serial Data Standards Including, but Not Limited To:
* HDMI/DVI (P7313SMA only)

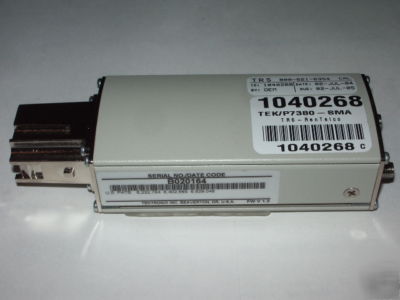

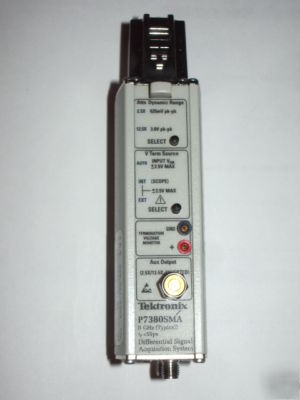

This is a used and nice condition of P7380SMA Differential Probe
You will receive what was show in the picture. Item was removed from working environment area.
This item is in excellent condition, working perfectly, and comes with a personal 5 Day Warranty against DOA.
