Solid state relay/ssr/contactor +heatsink din mount 10A

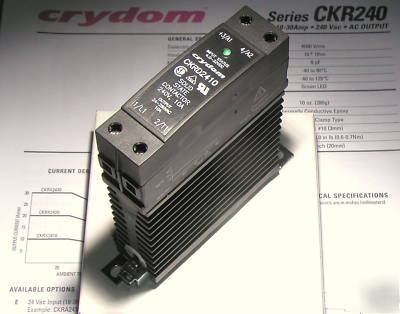

Crydom Solid State Relay Module.
Load: 10amp version [24..280VAC].
Control input range: 4.0V to 32Vdc
Prefitted with slimline heatsink and din rail/panel mounting bracket. [fits to standard 35mm "consumer unit" style din rail or can be panel mounted with screws.]Standard 22.5mm width.
Connections: Screw clamp terminals
Other features: Zero-cross switching. [This zero cross-firing feature eliminates problems of transmitted RFI/EMI and reduces starting surge currents] Operation indicator led. Clip-on teminal cover.
For crydom specification pdf datasheet see: http://datasheet.octopart.com/CKRD2410-Crydom-datasheet-119817.pdf
Module is NEW with full instruction and installation sheet.
