> Sokkia PL1 precise tilting level w/ micrometer (0.1MM)
Sokkia PL1 precise tilting level w/ micrometer (0.1MM)
PL1 Sokkia Precise Tilting level with micrometer (0.1mm) or.001" Engineers Auto Level #737550 42X
PL1 Sokkia Precise Tilting level w/ micrometer (0.1mm) or.001"
The PL1 Precision Level is the most accurate level. NIB Price $8,495
PL1 Level (from the manufacturer)

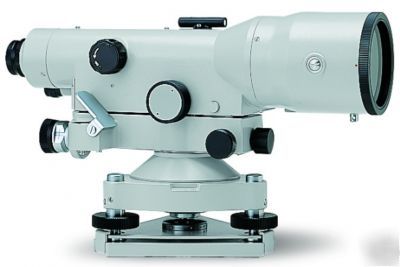

SOKKIA First-Order Precision Level PL1
Developed specifically for measurements with the highest degree of accuracy, ideal for mechanical equipment or deformation measurements.
SOKKIA First-Order Precision Level - is Sokkia's Precision Mechanics Showpiece!
SOKKIA's PL1 is the result of many years of experience in the area of highly developed instrument design and construction. The PL1 is the product of extensive experience in the field of advanced technology and sophisticated instrument making. The First-Order Precision Level PL1 was developed after extended and thorough research into every aspect of use under all conceivable working conditions. The level is subject to strict quality control procedures to ensure high accuracy and ease of use.
The successful combination of the sighting mechanism with a sensitivity of 10"/2 mm, the coincidence level, and the optical parallel plate micrometer with a direct readout of 0.2 mm guarantee precise leveling and highly accurate measurements.
Tilting Screw Mechanism for Fine Adjustment of Collimation Line
The tilting screw used to level the collimation line is engraved with graduations that accurately specify inclination and index lines indicating the number of turns of the tilting screw. The tilting screw is divided into 50 equal divisions with each division being equal to 2" of inclination.
Coincidence Level Delivering Sharp Bubble Image
The coincidence level features a high-tech optical design. The bubble image is magnified to twice its normal size, which results in an especially sharp and high-contrast image that is easy to see and facilitates the coincidence setting. The mark appearing on the bubble image quickly indicates the direction in which the tilting screw must be turned to achieve coincidence.
Optical Parallel Plate Micrometer for Precise Readouts
The PL1 is equipped with an optical parallel plate micrometer. The setting knob is turned until the graduation line on the leveling staff bisects the wedge-shaped reticule lines of the PL1 telescope. The change is numerically displayed in the optical micrometer window and this reading is added to the staff reading resulting in a direct readout accuracy of 0.01 mm.
Wedge-Shaped Reticule Line For High-Precision Readouts
The high-resolution telescope provides a sharp image of the target. It is fitted with a wedge-shaped reticule to read staff graduations more accurately. The distance to the staff can be obtained easily using the reticule line marking.
Optical Wedge Simplifies Fine Adjustment of Collimation Line
The collimation line is very easy to adjust. It is not necessary to adjust screws on the tubular level. Instead, simply turn the optical wedge until the collimation line is horizontal for precise results.
PL1, B1/B1C, B20, B21 Quick Specs
Compensator PL1 (split-image tubular vial); all others (wire-hung; magnetically damped)
Leveling Accuracy (all models) in 1.0 km (1 mile) of double-run leveling
Level Vial (all models) circular
It is used primarily for First Order Leveling and industrial applications requiring the highest degree of precision leveling.
Its optical wedge micrometer guarantees precise leveling and accurate measurement, providing easy and fine adjustment of the line of sight.
The PL1 eliminates error even under the most difficult surveying conditions
Invar Rods, scales and other industrial accessories are available.
The Instrument is available with micrometers reading to 0.1mm or 0.001in. A short focus model is also available.
