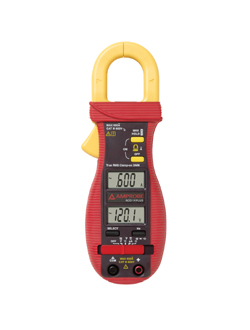

New amprobe acd-14 plus digital clamp on multimeter
The ACD-14 PLUS is the professionals choice for both HVAC and Electrical applications due to its complete set of measuring features. Its dual displays allows viewing amperage and voltage simultaneously. The ACD-14 PLUS meter offers thinner jaws over standard clamp meters. Allowing access to tight measurement areas and still accommodating conductors up to 28 mm. Both meters also measure Capacitance and Frequency. Very versatile clamp multimeters to support all your daily measurement needs.
* Dual Displays Permits simultaneous reading of Amperage & Voltage
* New thin jaws, 5mm thinner than others to access tight measurement spaces
* Micro Amps measurement for testing Flame Sensors
* Temperature with Type-K Thermocouple probe
* Hold and Maximum reading functions
* Accommodates conductors up to 28 mm (1.1 ) in diameter
* Auto power off and low battery indication
Battery Life: 95 hours approx. (in DCV mode)
Size: L190mm X W 63mm X H 32mm (L 7.48 X W 2.48 X H 1.25 )
Weight: 204 g (0.450 lb approx.)
Safety: CE EN61010-1, EN61010-2-032 - Pollution Degree 2
Display: 3-3/4 digits 4000 counts, dual LCD displays
Low Battery Indication: 0 C to 40 C (32 F to 104 F)
Power Supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032
