New 6' sushi display case with left refrigerated unit
72" YOSHIMASA SUSHI DISPLAY CASE W/LEFT REFRIGERATED UNIT
REMOVABLE TEMPERED GLASS BACK DOORS
PATENTED ZIGZAG BAR HOLDS TEMPERATURE CONSISTENTLY AND SAVES 20% IN ENERGY COST
OVERSIZED COMPRESSOR FOR FASTE RECOVERY TEMPERATURE RECOVERY WHEN DOOR IS OPEN
ABS FORMED BASE AND SIDES TO KEEP TEMPERATURE IN UNIT 27 DEGREES OR BELOW
STAINLESS STEEL FLOOR MAT INCLUDED (OPTION BAMBOO MAT)
FREE DELIVERY IS TO COMMERCIAL ADDRESS ONLY
we are Dealer of YoshimasaUSA Products!

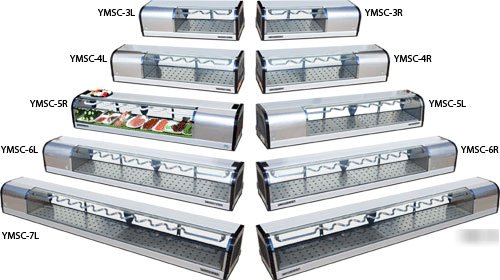

[ ALL sizes(3', 4', 5', 6' and 7') of Self-Contained (Refrigerated) Sushi Case ]
Designed and Featured for PROFESSIONAL SUSHI CHEFS
WIDE FLAT-TOP BOARD provides SAFE and STABLE dish placement and PREVENTS dishes from sliding
Conforms to ANSI/NSF 7 SANITATION & UL 471 SAFETY
ETL U.L NSF-7
YOSHIMASA Patented ZIG-ZAG CURVED EVA COIL for better Unit Performance
IDEAL DISPLAY and Keeping Fresh and Clean
Removeable TEMPERED GASS BACKDOORS and Perfect Drainage
SPEED-UP TEMPERATURE DROP and Stay Low Longer
Built-in FUSE PROTECTS COMPRESSOR Unit
STAINLESS STEEL FLOOR MAT included
[ YMSC-5R ] 5' Self-contained (Refrigerated) SUshi Case Display Gallery
T = Width of Top Board
ETL UL NSF-7 _ ETL
(Refrigerated Unit and Remote Unit)
2-Year Parts & Labor, 5-Year Parts on Compressor in USA and Canada Continent only
2
Giving a fresh and attractive look
Looking like a real Bamboo in shape and color|
Makiing the whole Sushicase Unit look elegance
Easy to remove and easy to clean
Warranty Valid Only In USA & Canada
All prices are F.O.B. the YOSHIMASA USA in California, USA and are subject to change with or without notice.
USA
USA
Freight Classes & Weights
USA USA USA
VISIBLE DAMAGE: :
2. Make sure that the condition of the damage is noted on your copy of the freight bill and signed by the driver.
3. Ask them to send their agent to complete an inspection report.
4. Action must be taken by you to notify the carrier within 48 hours upon receipt. It is the responsibility of the carrier to provide you with a written report. After notifying the carrier and filing a damage report, then you should notify us.
5. Be sure to keep ALL cartons and merchandise for inspection.
CONCEALED DAMAGE: :
1. Action must be taken by you to notify the carrier within 48 hours upon receipt. After notifying the carrier and filing a damage report, then you should notify us.
2. Request for the carrier to send their agent to complete an inspection report immediately.
3. Be sure to keep ALL cartons and merchandise for inspection. (DO NOT SEND IT BACK TO US UNTIL WE GIVE PERMISSION TO DO SO)
5. If the carrier stacks any contents on the glass units this can cause the glass doors to break or damage from the inside because they are double glass.
2008 Asian American Food Expo, Jan. 19~20, 2008, Pomona Fairplex, CA
The flyer he used at the Food Expo.
Install Self-contained Sushi Case
Before install a Self-contained (Refrigerated) Sushi Case, please read the Owner's Manual came with the unit and every Warning Signs attached on the unit body. While reading pay extra attention on Warranty Issues. Upon fully undersdtanding the unit including the pathway of AIRFLOW in the Condensing Unit, follow step-by-step instaructions below:
[STEP 1] Locate and prepare counter top where to set up the Sushi Case
The counter top should be flat and have wide and long enough room to give the condensing unit of the Sushi Case free flow of air.
Plus carefully locate the place that the unit can avoid any sort of heating appliance such as oven, rice cooker, gas range, fan etc. If they are to be with the unit in the same area, please place the unit at least 6-foot (72-inch) away from them.
183
[STEP 2] Carefully place the Sushi Case on the counter top
[STEP 3] Give enough space to the Condensing unit for free Air Flow
3
If the Condensing unit side is to be next to a closed wall, the Airflow OUTLET has to be at least 6-inch away from the wall otherwise the compressor will get serious damage. Blocking airflow is a direct violation of Warranty term and the warranty will be canceled.
16
Suppose installing two Sushi Cases (one with the Condensing unit on the LEFT, the other with on the RIGHT), we DO NOT recommend that two Condensing units' sides meet together side-to-side on the same counter top because warm air from the OUTLET of the condensing unit will affect each other. It is considered as blocking air flow. In this case, however, we highly recommend that those units be set apart at least 24-inch from each other.
2 2 61
We DO NOT also recommend that two Condensing units' sides cross at a right angle or any acute angle for the same reason explained above. It is considered as blocking air flow. Please put the Sushi Cases apartat least 17-inch from each other.
2 43
For a better looking if you apply custom-made Joint Box between two Sushi Cases where two Condensing units' sides cross, make big enough room (each side of Joint Box should be at least 12" long) for OUTLET Airflow otherwise it is considered as blocking air flow. Make several big holes on the top of the Joint Box would be a good idea.
2 30
DO NOT block the INLET and OUTLET Airflow pathway by putting things such as menu, decorative stuff, food cans, ingredient containers, personal belongings, etc. Keep the air pathway clear at all times otherwise it is considered as blocking air flow.
[STEP 4] Plug in the Power Cord (use a DEDICATED power outlet)
Use a dedicated power outlet, but DO NOT share or overload multi-way outlet sockets for any other electric appliance. Sharing power outlet is a direct violation of Warranty term and the warranty will be canceled. Also we DO NOT recommend use any type of extension power strip.
[STEP 5] Turn on the Power Switch
If the seller agrees there is a misrepresentation, the seller will refund only the purchase price of the merchandise upon its return to the specified return address.
