New 25 watt broadcast stereo dsp fm transmitter
SPECIAL INTRODUCTORY PRICING $939.00

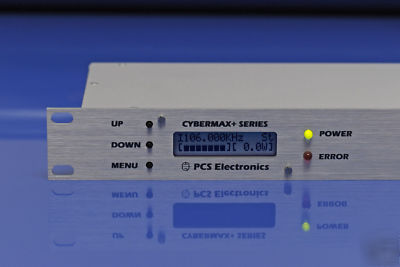

NEW FOR 2010 CYBERMAXFM+ 25W Professional Qsonic Transmitter
CYBER MAX FM+ 25W is our brand new enhanced FM exciter for 2010 with DSP stereo encoder. Unit includes direct power readout and a wide range of other functions. CYBER MAX FM+ 25W is the smallest from our line of 19 rack mounted FM transmitter series for demanding broadcasters, operating in the whole band II, from 87.5 to 108 MHz. Transmitter consists of a new advanced FM exciter (MAX PRO 4025+) and DSP stereo encoder which includes pre-emphasis circuit, active low-pass filter, limiter, compressor and even audio processor. Advanced FM exciter guarantees 25W of clean signal. No tuning is necessary, design is entirely wideband. All you have to do is set the frequency and change sound processing parameters, if desired. SWR, temperature and polarity protection make it very difficult to destroy the unit. Unit is housed in a brand-new professional 19" rack, new design is lighter and RF tight (does not leak RF). It is rugged and made for 24/7/365 operation. Each unit has a wide-angle high contrast backlit LCD display. This unit can give up to 30 watts on most frequencies. Manufactured by PCS electronics in Europe.
Click here for complete details of the CyberMaxFM+ 25W unit:
CyberMaxFM+ 25W Transmitter Product Features
- Completely flat audio response across entire FM BAND
- Better efficiency, less generated heat and better heatsink
- Shows all parameters of the previous models plus current consumption (see below)
- Shows forward/reflected power on LCD in watts
- Shows temperature on LCD in degrees C
- Shows supply voltage on LCD in Volts
- Shows uptime without power down or reset on LCD in minutes, hours and days
- Shows audio volume on LCD (audio level bar)
- Fan moved to the back and practically silent, fan powers down at low power output
- Gives full power even at 12-13V (previous model required 15V for full RF power)
- Unit operates and PLL locks across the entire band even at 10V
- No audible artifacts in RF signal from fan operation
- You can disable welcome screen with our logo or ask for custom logo (first time order 25 euro, later free
- You can disable keys internally to prevent users from changing settings
- Frequency range 87.5 to 108MHz (ask for Japanese band)
- Smallest PLL step 50KHz (50/100/200/500KHz can be selected)
- Output power: 20-25W typ (up to 30W max.), adjustable from 0 to max via LCD or internal trimmer if you prefer
- RF output connector: BNC female (rear panel)
- Audio input connectors: RCA (cinch) and XLR (DSP version)
- Audio input impedance: 10Kohms
- Pre-emphasis: Flat, 50 or 75usec, adjustable
- RF Spurious: >-80 dBc @ +- 1MHz min. away from carrier
- RF Harmonics: > -55 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL error
- Harmonic distortion (THD): > 0,1% ( 0,05% typ. )
- Channel separation: 40 dB min., ( 55 dB typ. ), 20Hz to 15kHz
- Power supply: DC 12-15V/4A or mains
- Standard 19" 1HE rack, 13cm deep (about 5")
- Modular construction, individual modules can be exchanged easily, if broken
- Easy changing of frequency (UP/DOWN keys, no tuning required)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
