12864 dot matrix lcd blue backlight white & demo board

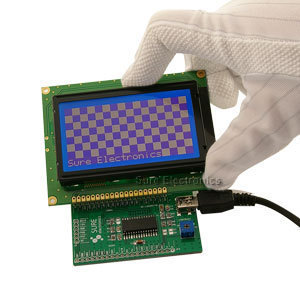

12864 Dot Matrix LCD Blue Backlight White & Demo Board
This kit consists of a 128x64 dot-matrix LCD and a tailored demo board.
This china-made LCD is a low-power consumption graphic module with a built-in controller KS0107 which allows easy connection with a MCU. Please refer to the following for details.
This LCD-specific demo board can be used to test if the KS0108-based 192*64 or 128*64 LCD or equivalent can display well.
1. Operating Temperature :-40? to +125?
Storage Temperature: -65? to 150?
Typical Output current of backlight: 60mA
Outline Dimension:66.04mm*40.64mms
3. Contrast adjustment supported
5. Programming interface reserved
