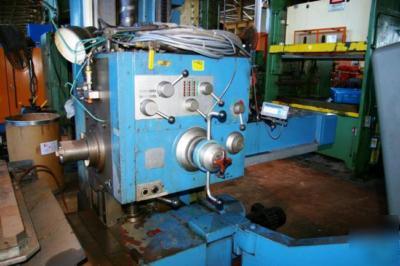

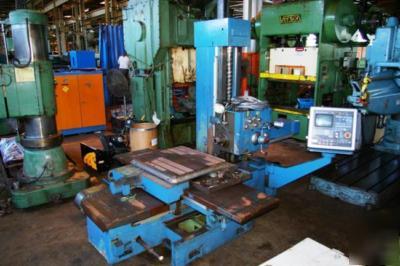

Wotan #B75/105MNC cnc horizontal table type boring mill
4-1/8" WOTAN MODEL #B75/105MNC CNC HORIZONTAL TABLE TYPE BORING MILL
MANUFACTURED 1984, RACO Stock Number R015813
*** VIDEO AVAILABLE UPON REQUEST ***
TABLE CROSS TRAVEL - ( X AXIS ) - 55"
HEADSTOCK VERTICAL TRAVEL - ( Y AXIS ) - 40"
TABLE LONGITUDINAL TRAVEL - ( Z AXIS ) - 32"
TABLE LOAD CAPACITY - 4,400 LBS.
SPINDLE SPEEDS - ( 20 ) - 16 TO 1250 RPM
FEED RANGE, BORING - ( 27 ) - .0008 TO .333 IPR
THREAD LEADS - ( 11 ) - 3 TO 96 TPI
RAPID TRAVERSE - ( X, Y, Z ) - 250 IPM

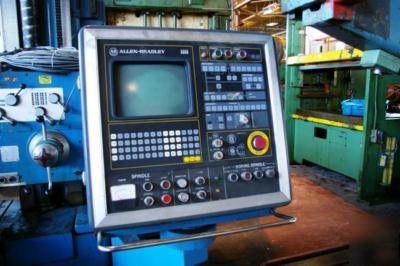

ALLEN BRADLEY 8200 CNC CONTROL
TABLE ROTATION ( B AXIS ) 1 DEGREE POSITIONING
NEWALL DIGITAL READOUT ( W ) AXIS
