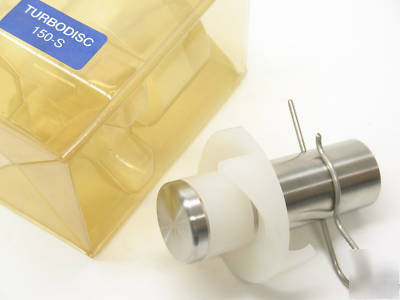

Turbodisc clip-disc 150 sanitary tank washer spray head
ITEM: BRECONCHERRY Clip-Disc 150 (Formerly the "TURBODISC 150-S"), 1-4 bar (15-58 PSIG) Inlet Pressure Range, 140 C (284 F) Max. Temperature, 2-3.5 Meter Cleaning/Wetting Radius (depending on fluid inlet pressure).
Materials of Construction: Stainless Steel 316/316L, PVDF
Max. Operating Temperature: 95 Centigrade
Max. Ambient Temperature: 140 Centigrade
Connections: 1-1/2" OD x 16 Gauge Tube
Nozzle Charactersitics: 360 Spray Pattern
Minimum Manhole/Flange Opening Size Required for Insertion: 85mm (3.35")
WHAT THE MANUFACTURER STATES ABOUT THE CURRENT PRODUCT:
"THE PERFECT LOW COST SPRAYBALL REPLACEMENT:
Ultra Hygienic Design - FDA, USDA, 3A Compliant
No Ball Bearings - Reduced Contamination
No Maintenance - Low Lifetime Cost
The Clip-Disc is designed for use in ultra hygienic applications where product purity and elimination of contamination problems are essential. The simple easily disassembled construction meets all the needs of regulatory bodies, and means the unit is also very cost effective. The unique disc design gives instant and complete uniform coverage of all internal surfaces providing a quick aggressive wash.
The Clip-Disc is ideal for replacing fixed or rotating spray balls or other rotating units where a quick aggressive wash is required. The high energy, high impact droplets provide very effective impingement up to two and a half metres depending on the size of the unit chosen, which means that a single unit can clean vessels up to five metres in diameter. Simple in design, effective in performance, they meet all the essential FDA, USDA and 3A material and design requirements. This makes the units highly suitable for the pharmaceutical, biotech, food, beverage and other hygiene conscious industries.
Wash fluid drives a simple rotating disc. The disc spins providing an instant and total coverage of all the internal surfaces of the vessel. All the wash fluid exits the unit over the disc creating powerful high energy droplets. The wash is fast and aggressive, delivering optimum performance in a short timescale. The units are also ideal for burst rinsing."
CONDITION: Surplus NEW in ORIGINAL PLASTIC BOX.
