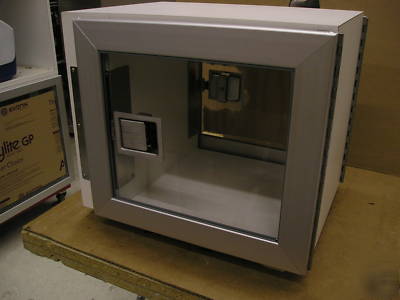

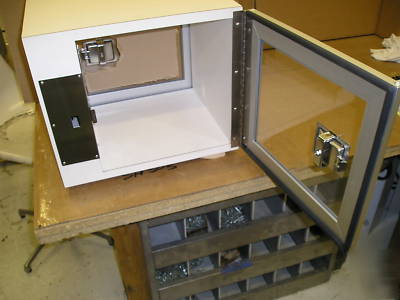

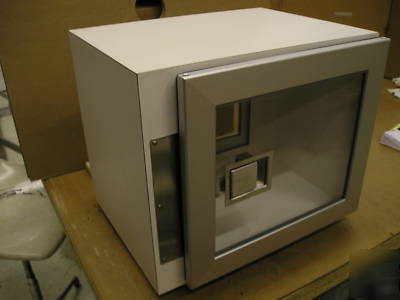

New atmos tech pass through 12"x 12"x 12" cleanroom
Atmos-Tech Pass Through -Brand New
Model # PT1212-12 MI Mfg Date 2010 Visit our website for more details about Atmos-Tech Ind.
The Through Wall Pass-Thru is a critical part of the product transfers which occur in every cleanroom. Although simple in design, the use of a Pass-Thru is essential to the maintenance of the high level of cleanliness within the cleanroom. The Pass-Thru significantly limits the amount of outside air exposed to the clean zone. With the use of a mechanical interlock system, the cleanroom is protected from the cross-contamination which would occur if both doors were to open simultaneously. Atmos-Tech constructs Pass-Thrus for small or large parts, wheeled carts, and even personnel.
Inside dimensions 12"H x 12"W x 12"D Outside dimensions 16 3/8"w x 13 5/8"h x 12"L
-White laminate Particle board interior and exterior
-Anodized aluminum framed doors with acrylic glazing and full gasket
-supplied with anodized aluminum wall mounting angles
-enclosed mechanical interlock system
-stainless steel continuous hinges
