LM13600 dual ota op amp kit w/ pcb (#1330)
LM13600 Dual OTA Op Amp Kit w/ PCB (#1330)
This is the LM13600 Dual Operational Transconductance Amplifier DIP IC Design Kit with PCB. It has 2 pieces of the very popular National Semiconductor LM13600N Dual OTA Op Amp in a 16-pin DIP package and two additional General Purpose Op Amps, the TL070.

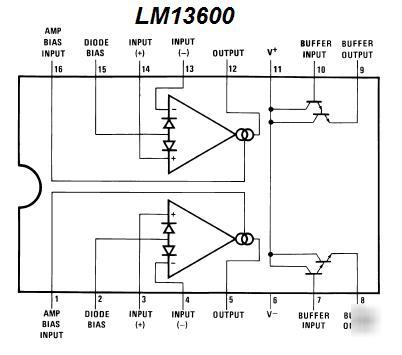

The LM13600 consists of 2 current-controlled transconductance amplifiers each with different inputs and a push-pull output. They are used in Current -controlled amplifiers, impedance, filters, and oscillators. They are also used in multiplexers, timers, and sample & hold circuits.
This kit includes a tremendous amount of different Thru-Hole components that you would use to develop numerous circuits. Included are different values of Resistors, Aluminum & Ceramic & Tantalum Capacitors, NPN & PNP Transistors, Signal & Power & Zener Diodes, Trimpots, LEDs, Pushbutton Switches, an Electret Microphones, and a miniature Speaker. It also includes some Electronic Hardware that canbe used in most projects for I/O.
With these parts, you can make numerous circuits, such as active filters, pre-amps, signal conditioners, function generators and much more. Search the web for incredible circuits to build. The Datasheets and Application Notes for the ICs and Transistors, along with hundreds of others, are located at Datasheets. We supply the parts, you supply the ingenuity. You get the following:
16 pin, Low-Profile, Solder Tab
1N4733, 5.1V, 500mW, Axial, DO-35
300 mAmps, 250V, TR250-145U-2, Raychem
