Jena-tec ball screw ballscrew 4 turns/inch 24MM dia cnc

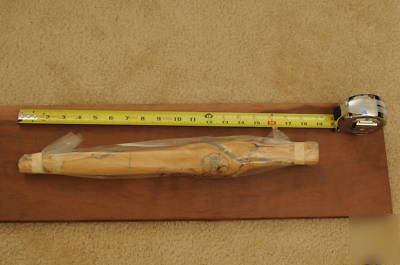

New in wrapper Jena-Tec ball screw with 24mm diameter thread and 4 turns/inch.

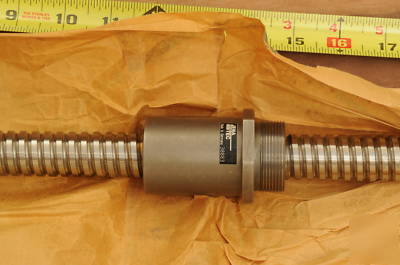

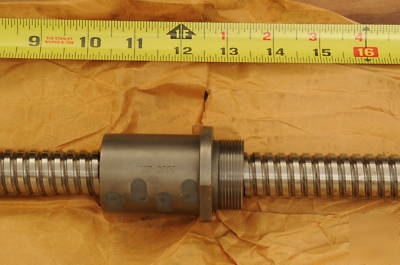

New old stock, ball nut length is 2.25 inches with threaded length of 14.5 inches
with 12 inches of travel. The machined end is 20 mm in diameter with a length of
1.105 inches and the terminus of the machined shaft has a diameter of 0.625 inches.
The overall nut length is 2.825 inches which includes the threaded part which is not
part of the ball circuit. Thick ball screw for rugged application.

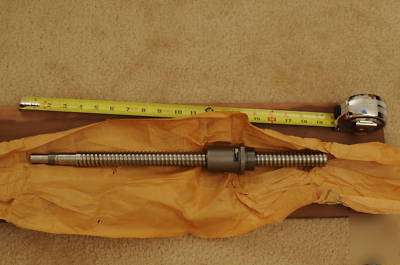

Overall length of the ball screw is 18 inches.
keywords: cnc router NSK THK Warner IWIN robot robotics
I have the original photo files, 900kB each if you want to see those.
