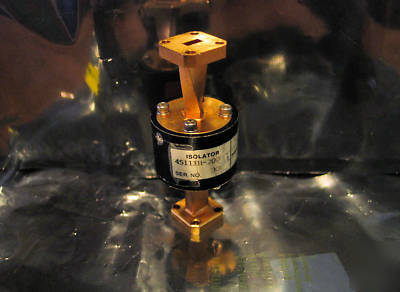

Hughes 45111H-2000 waveguide isolator, 26.5 to 40 ghz
The Hughes 45111H is an ideal isolator for test and measurement applications. Its high, broadband isolation (better than 25 dB) minimizes the reflection effects of a source. Its low SWR and low insertion loss helps to improve accuracy without the attenuation of matching pads.
This isolator uses a Faraday-rotation design. It consists of a section of waveguide containing low-loss ferrite material and impedance matching elements. A permanent magnet supplies the external magnetic bias field to the ferrite core.
