> Cd manual caterpillar 130G mutor grader 3304 engine
Cd manual caterpillar 130G mutor grader 3304 engine

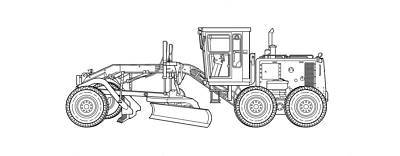

CD ( All manuals are in Adobe Acrobat PDF format for easy viewing, printing and searching) of the Military Caterpillar 130G Series Grader with the Cat 3304 turbocharged diesel engine which is used for rough and finished grading, low and high bank sloping, flat and V-ditching, scarifying bituminous road mixes, and snow removal. Mission support role includes construction and maintenance of roads, airfields, hardstands, drainage, site preparation for pipeline, and river crossing. The 130G Series Grader has excellent maneuverability; fast, precise blade control without drift; superior visibility, convenience, and safety; with true sit-down operation.
These manuals are the one used by the U.S. Army and other forces to show the drivers how to operate and maintain the equipment, and the mechanic how to repair the equipment as needed.
Remember you are getting all six (6) manuals on CD for a fraction of the price of just one factory book.
LO 5-3805-261-12 This LO is divided into lubrication intervals. For example, when performing a daily lube, refer to page 4 through 5. Weekly, Monthly, Quarterly, Semi-Annual, Annual and irregular interval instructions are given on the following pages. These intervals are based on normal operation. You should lube more during constant use. You should also lube more if operating in harsh weather, like arctic cold or desert heat and sand. You must lube after water fording.
TM 5-3805-261-10 dated April 2006 for the Grader, Road, Motorized, Diesel Engine Driven (DED), Heavy, Commercial Construction Equipment (CCE) Models 130G, 130GNS, 130GNSCE, 130GS, and 130GSCE.This manual is designed to help you operate all models of Caterpillar 130G Series Graders and to perform operator troubleshooting and maintenance on the equipment.
Some chapters in this book are:
Chapter 1, General Information, Equipment Description, and Theory of Operation, provides general information on the manual and the equipment.
Chapter 2, Operation Instructions, explains and illustrates all operator controls and indicators and contains a Decal and Data Plate Guide. It also describes how to perform all operating procedures for the grader: Operation Under Usual Conditions, Advanced Operation and Operator Tips, and Operation Under Unusual Conditions.
Chapter 3 covers all Operator Troubleshooting and contains a Troubleshooting Symptom Index. If the grader malfunctions, this index should always be consulted to locate the appropriate troubleshooting procedure.
Chapter 4 covers Operator Maintenance. Major areas covered are Preventive Maintenance Checks and Services (PMCS) and operator level maintenance tasks.
The next two manuals are for use in performing Field (Unit and Direct Support) Maintenance on the 130G Series Grader.
TM 5-3805-261-23-1 dated April 2006 This manual is designed to help you perform troubleshooting and maintenance on the 130G Series Grader and is divided into chapters and written in work package format:
The chapters divide the manual into major categories of information such as General Information, Equipment Description, and Theory of Operation; Troubleshooting
Procedures; Unit Field Maintenance Instructions; Direct Support Field Maintenance Instructions; and Supporting Information.
Chapter 1, General Information, Equipment Description, and Theory of Information, provides general information on the manual and the equipment.
Chapter 2 covers Troubleshooting Procedures. WP 0005 00 contains a Troubleshooting Symptom Index. If the machine malfunctions, this index should always be consulted to locate the appropriate troubleshooting procedure. Chapter 2 also includes STE/ICE-R testing of selected machine systems.
Chapter 3 covers Unit Field Maintenance Instructions. Major areas covered are Preventive Maintenance Checks and Services (PMCS), Service Upon Receipt, as well as instruction on maintaining components at Unit Field Maintenance level.
TM 5-3805-261-23-2 dated February 2007 is the second volume and starts with:
Chapter 4 covers Direct Support Field Maintenance Instructions.
Chapter 5 includes Supporting Information: References, Maintenance Allocation Chart (MAC) Introduction; MAC; Expendable and Durable Items List; Tool Identification List; Illustrated List of Manufactured Items; Torque Limits; and Schematic Diagrams.
TM 5-3805-261-23P dated February 2007 This manual will show the breakdown of all the parts and will have the spares and repair parts; special tools; special test, measurement, and diagnostic equipment (TMDE); and other special support equipment required for performance of Field and Sustainment level maintenance of the Grader, Road: Heavy, Diesel Engine Driven.
(1) Grader, road, motorized, DED, heavy,
commercial construction equipment (CCE).
(2) Grader, road, motorized, DED,
(3) Grader, road, motorized, DED,
This manual contains information considered appropriate for safe transport of these items. Included are significant technical and physical characteristics with
safety considerations required for worldwide movement by the various transportation modes. Where considered necessary, metric equivalents are given in parentheses following the dimension or other measurement.
This manual is intended for transportation officers and other personnel responsible for providing transportation services.
TB 385-9 Safety Manual for Operating and Maintenance Personnel
