> Bcp 420B 3.0 ghz dfb laser transmitter 420B-23ST
Bcp 420B 3.0 ghz dfb laser transmitter 420B-23ST
BCP 420B 3.0 GHZ DFB LASER TRANSMITTER 420B-23ST

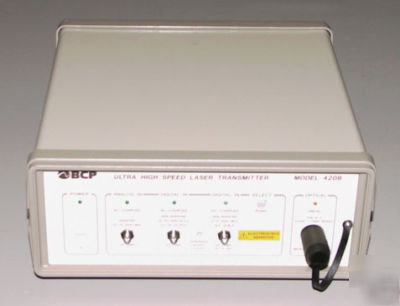

The BCP 420B ultra high speed laser transmitter is designed to be a source of high quality digital and analog fiber-coupled optical signals. In the digital mode, the optical output waveform conforms to the eyemask requirements of BellCore GR-253.
This unit has the folowing features:
* Transmission up to 2.5 Gb/s
* SONET /SDH compliant to OC-48/STM-16
* Very high quality optical output eye
* Analog and digital operating modes
* Long fiber dispersion effects testing
* DC-Coupled Digital Input: -4.5 to 0.0 V maximum without damage
* Bit Rate: 0 to 2500 Mb/s minimum; 3000 Mb/s typical
* Pulse Width, Minimum: 0.4 ns maximum
* Logic Levels (10 K, 10 KH, 100 K; Si or GaAs ASIC): Any standard ECL: high = -900 mV; low = -1700 mV; threshold = 1.3 0.2 V (adjustable)
* Input Termination: 50 ohms to -2.0 V DC
* AC-Coupled Digital Input: 2.0 Vpp maximum
* Bit Rate: 50 to 2500 Mb/s minimum; 3000 Mb/s typical
* Pulse Pattern: 40 to 60% ones density
* Amplitude (for fully limited optical output): 0.70 to 1.5 Vpp minimum
* Impedance (AC-coupled through 0.1 uF): 50 ohms
