2PCS 50W class-t digital audio power amplifier TK2050

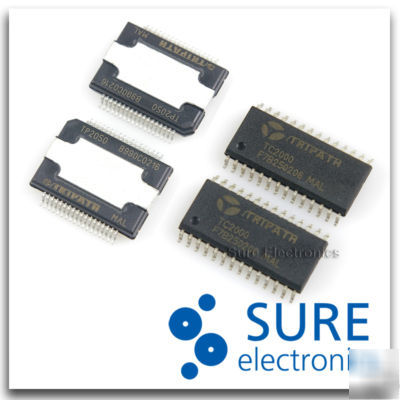

2pcs 50W Class-T Digital Audio Power Amplifier TK2050 (TP2050/TC2000 Chipset)
TK2050 (TC2000/TP2050 chipset) is a 50W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath s proprietary Digital Power ProcessingTM technology. Class-T amplifier offers both the audio fidelity of Class-AB and the power efficiency of Class-D amplifier. TK2050 uses a thermally enhanced PSOP package-TP2050 providing for a more effective and flexible heat removal solution.
TC2000: 18.00mm (L) X 10.26mm (W) X 2.40mm (H) 0.2mm
TP2050: 16.80mm (L) X 14.10mm (W) X 3.30mm (H) 0.2mm
117W @ 4 , <10.0% THD+N (paralled outputs)
0.005% THD+N @ 70W, 4 (paralled outputs)
89% @ 117W, 4 (paralleled outputs)
Operating Free-air Temperature Range
Maximum Junction Temperature
ESD Susceptibility- Human Body Model, all pins
* Mini/Micro Component System
* Stereo applications (6 /8 )
* Class-T Digital Audio Power Amplifier IC TP2050 2
* Class-T Digital Audio Power Amplifier IC TC2000 2
Go to Download Center for manual,driver or application.
