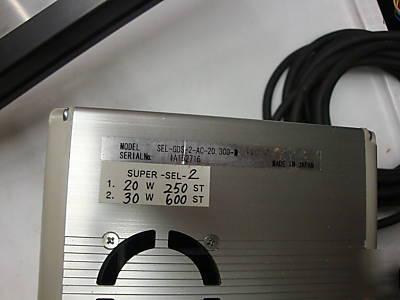

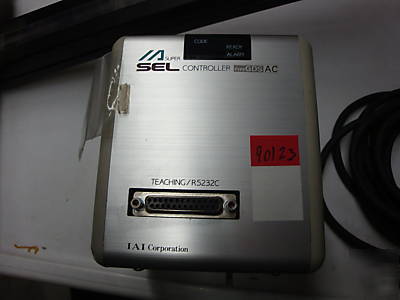

Intelligent actuator super sel 2 #90123

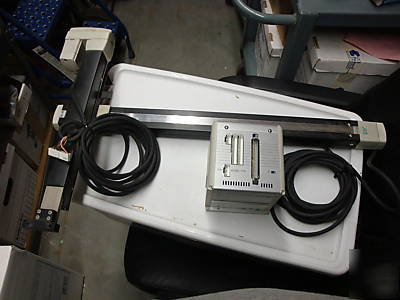

The DS Series is an electromechanical alternative to air cylinders. The Series is comparable in size and price, but it offers capabilities that pneumatic air cylinders can't match, including: Multiple positioning Acceleration/deceleration programmability Speed setting programmability Programmable control The Slider Type is more of a traditional design, with the slider moving smoothly and programmable within the given stroke length.

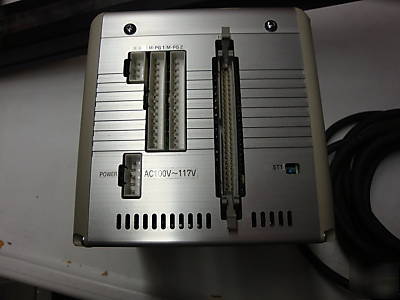

The DS Series is a 2-axis configuration called "DS Systems". Options include: Magnetic Brake AQ Seal Long-Term Lubrication Controller Features CPU Driver User I/O External 24V DC power supply Memory for 1,000 steps of programming Positioning for up to 500 points 15 user inputs (standard) 6 user outputs (standard) Actuator Specifications The DS Series Slider Type design incorporates the same patented integrated motor principles as our IS Series, but at a lower wattage.
Motor: 20W or 30W AC servo motor w/incremental optical encoder
Ballscrew Lead: 12mm, 6mm, 3mm; 10mm, 5mm, 2.5mm
Frame Material: Now using aluminum instead of steel to lower weight and length.
Slider Type Stroke length: 50mm ~ 600mm (50mm increments)
Max speed: 800mm/sec (31.5 in/sec)
Max payload: 12kg (26.4 lbs) horizontal 6kg (13.2 lbs) vertical
Repeatability: +/-0.02mm (+/-0.0008") +/-0.02mm (+/-0.0008")
Power Supply Voltage DC24V +/-10%
