Edwards 100 ton jaws iv hydraulic ironworker,bending

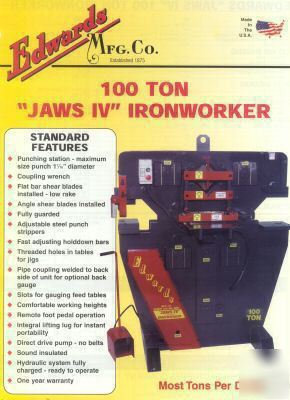

(1) NEW Edwards 100 Ton Hyd. Jaws IV Ironworker with Standard features: List Price: 14,996.00 Feb 2010 SPECIAL PRICE: $12,996.00
Punch & Die Starter SET supplied at NO CHARGE ! Electric Stroke Control NO CHARGE
Stock Machines subject to prior sale
* Punching Station-Max size punch 1-1/16" dia
* flat bar shear blades installed- low rake
* Angle shear blades installed
* Adjustable steel punch strippers
* Fast adjusting holddown bars
* threaded holes in table for jigs
* Pipe coupling welded to back sideof unit for optional backgauge
* Slots for gauging feed tables
* Remote foot prdal operation
* Lifting Lugs for portablity
* Hydraulics Fully charged ready to operate
* Std Punch & Die Starter Box Included at NO CHARGE (8 sets 3/16" to 1-1/16")
2. Punching Capacity:1-1/16" dia in 1" Plate
7. Angle shearing:Max.5" x 5" x 1/2"
8. Flatbar shearing:Max width: 3/4" x 14/ Max Thickness: 1"" x 10"/Max. Round:1-1/4"/Max. Sq:1-1/4"
9. Cycle Time: 1/2" x 2" 2-seconds
10. Main Motor: Std- 7.5HP 208/240/3/60 (440/480/3/60 Available ) Upgrade Cost Applies: Contact OUR OFFICE!
11. Delivery: Stock to 10 days or less, subject to prior sale !
12. F.O.B. Point Easton,Pa. or other locations

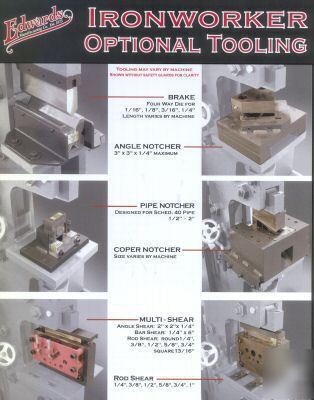

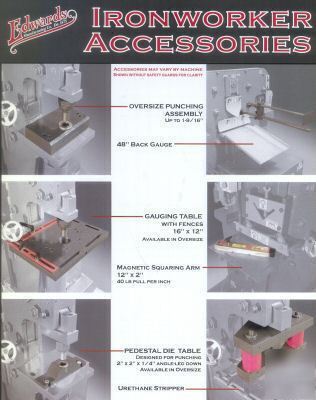

Optional Accessories on Original Equipment
4. Quick Change Punch Coupling:
2. 12" Brake w/4 way Die: ( 1/16",1/8",3/16",1/4" )
6. Multi Shear: (Angle 2" x 2" x 1/4",Bar 1/4" x 6" ) Rod 1/4".3/8",1/2"5/8",3/4" SQuare: 13/16"
7. Pedestal Die Table Std to 1/1/16:
8. Pedestal die Table Oversize to 1-9/16":
9. Pipe Notcher Housing for 1/2" to 2" Dies:
10. Punching Gauging Table: 16" x 12 " Std Dies ;
11. Punching Gauge Table oversize dies:
12. Quick Change Punch Coupling:
13. Rod Shear & Housing: ( 1/4" 3/8",1/2",5/8",3/4",1")
14. Urethene Stripper Assembly:
15. Vee Notcher 3" x 3" x 1/4"
HAVE ANY QUESTION,GIVE US AN EMAIL! WE ARE UPDATING OUR TOOLING PRICING ! OTHER EDWARDS MODELS AVAIABLE !
