Falcon - falcon bottle top shrink tunnel tun-1230 x

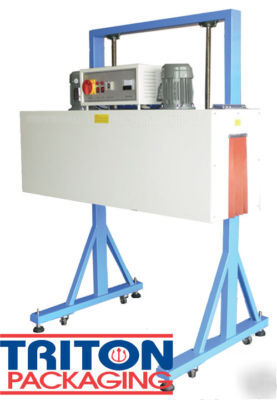

NEW IN BOX Falcon Bottle Top Shrink Tunnel
The shrink tunnel TUN-1230X supplies heated air to an enclosed chamber for the purpose of shrinking a polymeric film around a package for physical protection and improve the appearance of containers or products. This tunnel mounts on your production line.
* Simple to Use Minimal Operator Training
* Uniformly Shrink Tamper Resistant / Tamper Evident Safety Bands for Ultimate Product Safety
* Optimal Band Shrinkage, Positioning, and Presentation
* Rugged Powder Coated Steel Construction
* Teflon Conveyor with Flat Link System
* Focused Heat Application (Bottle Top)
* Adjustable Tunnel Temperature (0 ~ 250 C)
* Tunnel Dimensions: (40 Inches x 6 Inches x 16 Inches)
* Maximum Bottle Size: (4.5 Inches x 16 Inches H)
* Dual Removable Height Adjustable Bottle Guides
* Whole System Speed Control via Step-less Speed Controller
* Quick Change Tunnel Height Adjust (no tooling necessary)
* Self Standing Unit - Can be Operated by self or in a Production Line
* Compatible with Bottles of Most Shapes
* Dual Motor Air Convection System
* Main Circuit Safety Breaker
* Heating System Amperage Draw Indicator
Work Efficiency: 2000-3000 Packages Per Hour
Tunnel Path Dimensions: L 40 (1016mm) x W 6 (152mm) x H 16 (406 mm)
Machine Dimensions: L 63 (1600mm) x W 40 (1016mm) x H 81 (2057mm)
Machine Weight: 544 lbs (247 Kg)
Box Dimensions: L 68 (1727mm) x W 44 (1117mm) x H 89 (2261mm)
