> Honeywell R8184M1051 cad cell relay / 40VATRANSFORMER

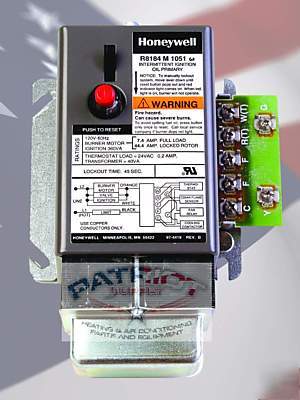

Honeywell R8184M1051 cad cell relay / 40VATRANSFORMER
HONEYWELL CAD CELL RELAY WITH 40VA IGNITION TRANSFORMER. PROTECTORELAY. BURNER MOUNT, LINE VOLT LEADWIRE CONNECTIONS & LOW VOLT TERMINALS, 45 SEC SAFETY SW, VOLTAGE 120V 60 CYCLE, INTERMITTENT IGN. 40VA TRANSFORMER FOR HEAT/ COOL. 0.2A THERMOSTAT CURRENT. USE WITH C554.
Protectorelay Oil Burner Control with 45 seconds lock out timing
Operates the oil burner and oil valve (if desired) in response to a call for heat from a low voltage control circuit.
Ignition is on whenever the burner is on (intermittent ignition-also called constant ignition).
Solid state flame sensing circuit.
External button to manually reset safety switch after lockout.
Enclosed safety switch must be manually reset after safety shutdown.
R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment.
Mounts on standard 4 x 4 in. junction box.
C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
Mounts on standard 4X 4 in. junction box.
Electrical Rating; Contacts (full load)
7.4 A @ 120 Vac; 3.7 a @ 240 Vac
Electrical Rating; Contacts (locked rotor)
44.4 A @ 120 Vac; 22.2 A @ 240 Vac
4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
111 mm high x 104 mm wide x 64 mm deep
UL Component Recognized; File no. MP268, guide no. MCCZ2
