Ttc/acterna tpi 570 portable isdn pri isdn test set

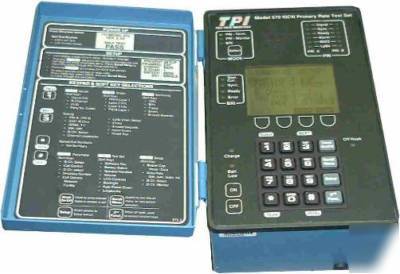

TTC / Acterna TPI 570 ISDN Primary Rate Test Set without the Basic Rate Interface (BRI) Option.
Comes with the carrying case, instructions and AC adapter.
The unit powers up and passes self test.
The first portable test set to support Primary Rate Interface ISDN, TTC's TPI 570 has now become the industry standard in Primary (PRI) and Basic Rate (BRI) ISDN testing. Most major ISDN service providers, including all Regional Bell Operating Companies (RBOCs) and large independent telephone companies (ILECs), rely on the TPI 570's versatility and power. A full-featured, multi-functional test set, the TPI 570 supports all U.S. call controls, including nation ISDN, and allows considerable flexibility in turning-up and troubleshooting present and future PRI and BRI ISDN services.
An easy-to-follow, menu-driven display allows field technicians to handle each job the first time out without formal training. Rugged, compact and weather-resistant, the TPI 570 is built to test under all types of field conditions. A rechargeable battery pack provides 12 hours of continuous use, and connector interfaces are protected from the elements under a weather-sealed cover. The backlit LCD is ideal for testing in dark environments, and a built-in speaker and microphone enable hands-free operation.
* Monitors existing services
* Emulates network to troubleshoot CPE
Basic Rate Interface (not equipped)
* Monitors existing services at U or S/T interfaces
* Emulates network at the U interface to troubleshoot CPE
* Measures 40 kHz tone: U-Line voltage; S/T Receive Signal Level and PS1, PS2, PS3 power sources
* ViTL(TM) software provides remote access and management of the TPI 570
* Tests a 23B+D circuit configuration or a NFAS 23B+D and 24B configuration.
* Emulates the NT2 and verifies operation of premises equipment, such as a PBX or a router.
* Tests Primary Rate two B channel transfer and calling name delivery for National ISDN 2.
* Tests 2B+D Voice Data and Packet circuit configurations.
* Verifies bearer services carried on ISDN circuits.
* Determines line quality using test patterns to determine error performance.
* Emulates the NT1 and helps verify the operation of premises equipment.
Dual PRI Transceiver Capability: 5ESS, DMS (Nortel and NI-2)
Supports NFAS and back-up D-channel
Virtual Test Link(TM) (ViTL(TM)) remote control

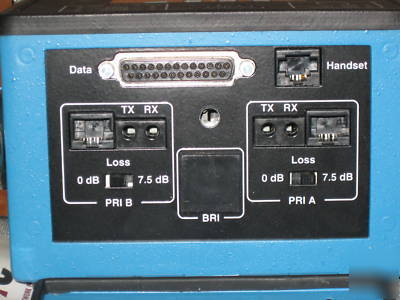

Physical (mini-bantam 310 jack or RJ45/RJ48c)
Interface (BRI) - Optional (Not included)
Speed dialing (10, 30-digit #'s)
Selectable bandwith (Nx64, contiguous, flexible)
Data Capability (BRI) - Not Included
D-channel location select (PRI)
D-channel back-up testing (PRI)
D-channel message capture/LCD display/store
Call controls (National, AT&T and NTI custom)
Modes: Terminate, Monitor, PRI, BRI
DS1: CRC/BPV/frame errors and errored seconds
Line build-out (dB loss selection)
PS1, PS2, PS3 voltage/polarity
40 kHz test tone (send and receive)
T1 (511, 2047, 2^15-1, 2^20-1, 2^23-1. 1 in 8, 2 in 8, 3 in 24, Zeros, Ones, QRSS)
