Red lion PSAC0000 npn o.c. proximity sensor - o

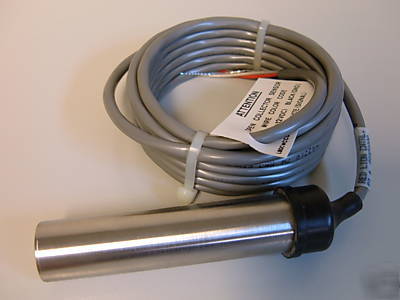

Red Lion PSAC0000 NPN O.C. Proximity Sensor
Supply voltage: +12VDC @ 20mA max; Reverse polarity protected.
Max. Switching Frequency: 5KHz
Output: NPN Open Collector Transistor; VOH = 30VDC max; VOL = 1V @ 40mA max current limit.
Max Sensing Distance: .059" (1.5mm)
Output Cable: 10ft PVC jacketed 3-wire 22AWG conductors w/ stranded shield and 100% foil shield coverage.
Operating Temp Range: -18*C to +60*C (0*F to +140*F)
Construction: Epoxy encapsulated .25" dia. sensor in .750" +/- .005" dia #304 Stainless Steel case.
