R&s FSIQ7 vector signal analyzer 20 hz - 7 ghz *save*

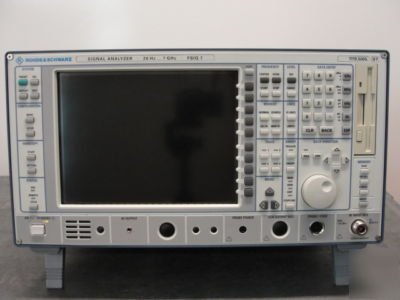

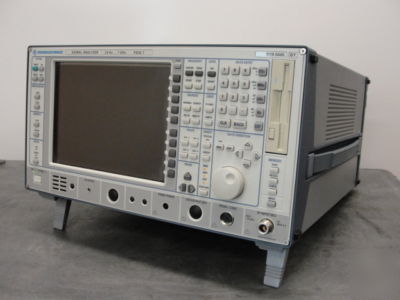

R&S FSIQ7 SIGNAL ANALYZER 20 Hz - 7GHz
* Description: The R&S FSIQ7 / Rohde & Schwarz FSIQ7 is a high performance Vector Signal Analyzer with a frequency range of 20 Hz to 7 GHz that was designed for the 3G radio generation.
Features of the R&S FSIQ7 Vector Signal Analyzer include:
o RBW of 1 Hz to 10 MHz in 1/2/3/5 steps o 5-pole resolution filters with high selectivity
o FFT filter with 1 Hz to 1 kHz RBW for fast measurements
o Displayed average noise floor of -150 dBm typ., in 10 Hz bandwidth
o Third order intercept +22 dBm o Phase noise of -150 dBc (1/Hz) at 5 MHz offset
o Ultrawide dynamic range of 75 db ACPR for WCDMA (4.096 MHz integration BW)
o 82 dB ACPR in altenate channel for WCDMA
o Total level uncertainty <1dB up to 2.2 GHz, <1.5 dB up to 7 GHz
o True RMS detector for high-precision power measurements irrespective of waveform
o Fast time domain analysis with 1 s zero span sweep time
o Integrated broadband vector signal analyzer for all main mobile radio standards and modulation modes with versatile result display. I and Q signal, magnitude and phase, vector and constellation diagrams, spread sheets with numeric evaluation of modulation errors and demodulated bit sequence.
* Working Condition: DOA. This unit powers on but has no display ~ presumed inoperable beyoned economical repair.
