United electric ue J6-152-9529 type J6 pressure switch

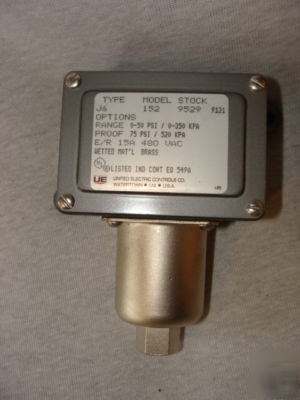

United Electric UE J6-152-9529 Type J6 Pressure Switch, new in box, surplus.
UE J6 Pressure Switch, 0-50 psi setpoint range, one SPDT, 15A@125/250/480 VAC, 1/2" FNPT elect. conn., NEMA 4X encl., brass bellows, 1/4" FNPT nickel-plated brass press. conn., internal adjust. w/o ref. dial
The UE J6 is a reliable, sensitive pressure switch, originally designed for instrument air applications in process plants. Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 for threshold protection in machinery and equipment.
* Sealed, isolated brass or SS bellows sensors
* Designed to meet enclosure 4X
* Adjustable deadband models for precise on-off control
* Adjustable ranges of 30" Hg vacuum to 6000 psi
