New port 10QM20HM.70 high power yag laser mirror

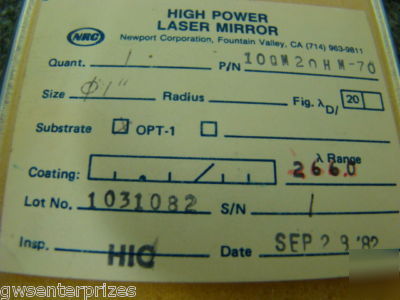

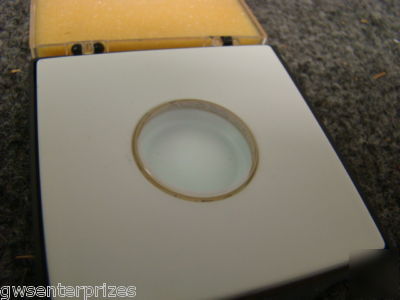

Newport 10QM20HM.70 High Power YAG Laser Mirror.
The 10QM20HM.70 High-Energy Nd:YAG Laser Mirror is manufactured using high purity fused silica substrates and ultrahard dielectric coatings. This 25.4 mm diameter mirror has been specifically designed to withstand high-energy pulses and have a high damage threshold. Meticulous production procedures guarantee they will withstand fluences greater than 10 J/cm2 at 1064 nm. The coating is highly durable and will withstand repeated cleaning. This frequency-quadrupled 266 nm Nd:YAG mirror has a 0 incidence angle. Reflectivity is greater than 99.7% for s-polarization and greater than 99% for p-polarization.
