New digital handheld force gauge,push pull gauge,n/kg/lb
HF-500 Handheld Digital Force Gauge(500N/50KG/110LB)
1)Muitiple displays in N/KG/LB, auto unit conversion;
2).RS232 Computer interface / Software for data download and analysis;
3).Setup the upper / lower limit freely. Indicator light / buzzer send out alarm;
4).Showing test direction ( Push or Pull );
6).High precision & resolution, adjustable sampling speed from 15 up to 480Hz;
7).Holding and removing the peak value automatically (0 to10sec can be setup );
8).In storage 200sets measuring data, and automatic calculate storage data average, max, min value. In storage data pagination browse and check;
9).AC power / Re-chargeable battery operation capable;
10).Defined period of auto power off without operation;
11).Port-in output ( baud rate 9600 ) can print 10 group storage testing data Max, Min, Average value and eligibility or disqualification judgement;
12).Handy use or fix on the test fixture ( option )
1).Capacity: 500N / 50Kg / 110lb;
2).Min unit: 0.1N / 0.01kg / 0.02lb;
3).Value error: 0.5%; **Units: N, Kgf, LBf;
4).Sampling speed: 15Hz to 480Hz;
5).Work temperature / Humidity: 0C to 40C, 15 to 80%;
6).Power Supply: 110 to 220V AC battery charger or battery operation (Nickel battery 6V/1500mAh );
7).Work environment: No vibrancy and corrosion;

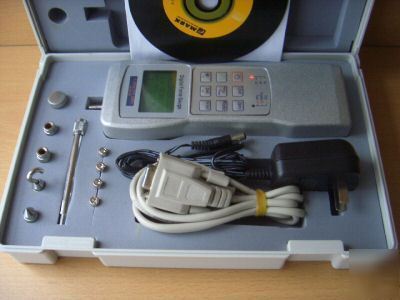

8).Accessories: Pull clamps / Push clamp / Prolong stick / Mounting screws / english user manual / Carrying case / 110 to 220V Battery charger / PC software and serial interface cable.
I also have HF-2N,HF-5N,HF-10N,HF-20N,HF-50,HF-100N,HF-200N for your choice.
If you are interested in HF-1KN,HF-2KN,HF-5KN, please email me for the price.
