Mixer, mcl p/n ade-2, 0.05 to 1 ghz rf/lo, 1 lot = 6

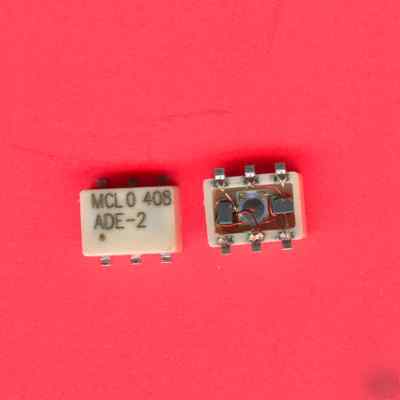

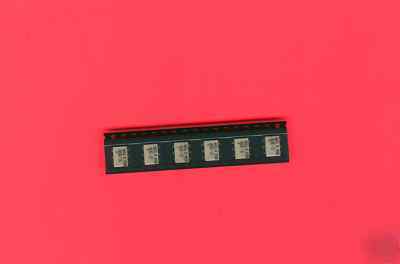

This LOT is composed of 6 each Mini-Circuits ADE-2 surface mount (SMD) Double Balanced Mixers (image 1 & 2). The specifications for this mixer are as follows. LO/RF Frequency Range: 5 1000 MHz, IF Frequency Range: DC 1000 MHz, LO Input Power: 7 dBm nominal, 4 dBm minimum, 10 dBm maximum. 3 out of 100 of these devices were soldered in and tested on the PB Board design shown at this URL, http:// /rma1k.htm, and the test results can be viewed by clicking on this URL, http:// /xm01
If you need Down Converter components click on the following URLs.
Mixer PC Boards: http:// /mxrpcb.htm
Local Oscillators: http:// /vco page.htm
RF Amplifiers: http:// /amp page.htm
Connectors & Adapters: http:// /complist.htm.
Because of the DC coupled IF port, the ADE-2 can be used in a phase detector or frequency marker generator application. For frequency marker generator application information, click on this URL, http:// /dirdet.htm, and refer to Figure 1.
