Getinge castle warming warmer cabinet model 5618 nice

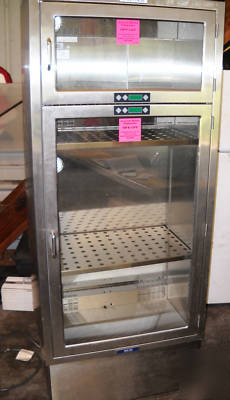

A unique 18'' deep recessed warming cabinet with look-in
tempered glass doors into two separate, independently
controlled, convection heated chambers. Ideal for installation
along with recessed stainless steel OR cabinets. Temperature
range in each compartment is adjustable from 90 F (32 C) to
160 F (71 C) and is provided with a lock-in feature to prevent
unauthorized changes to the temperature settings.

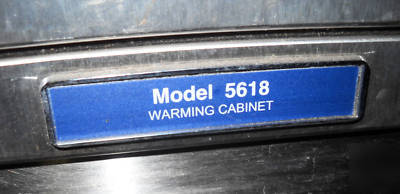

The Getinge 5618 Warming Cabinet is designed for the warm
storage of saline solutions and/or blankets used in the care of
patients in areas such as surgery, recovery, OB/GYN, ICU or
Note: This product is not to be used for the storage of
30'' (762mm) 60'' (1524mm) 18''.7 (457mm)
Lower: 26'' (660mm) 40'' (1016mm) 16.7'' (425mm)
15 two-liter flasks or equivalent dry goods.
45 two-liter flasks or equivalent dry goods.
useable volume: 12.7 ft3 (359 L)
Recessed in wall without Pedestal Base
Recessed Cabinet w/Pedestal Base
Confidence in the Getinge Group is the most important quality
criterion. This must be the hallmark of all our external and
internal commitments, activities and products. Products and
services supplied by Getinge must conform to the agreed
business. The achievement of these quality goals is the basis
for a continued competitive and successful enterprise.
This warming cabinet has been designed to conform to the

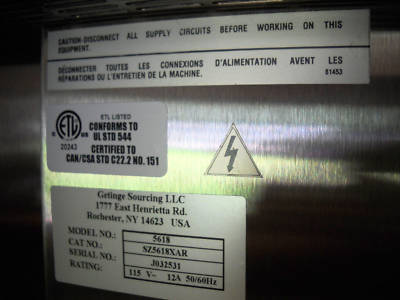

CETL Listed to CSA C22.2 No. 151
California Seismic Anchoring Requirements
The control panel for each compartment is located
conveniently at eye level in the door frame of the compartment
is a leading global provider of equipment
and systems that contribute to quality enhancement and cost
efficiency within healthcare and life sciences. Equipment, services
and technologies are supplied under the brands
control and prevention within healthcare and life science and
for surgical workplaces, cardiopulmonary and critical care.
Rochester, New York 14623-3133

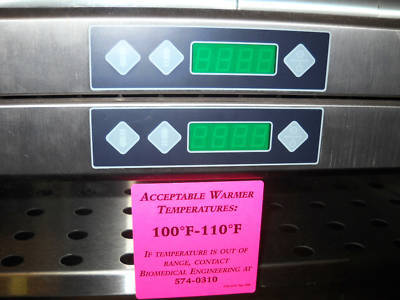

Control touch pads provide selection of:
Set point from 90 F (32 C) to 160 F (71 C)
Temperature display in F or C
Temperature set point Lock-In
L.E.D. displays provide the following information:
Control off Chamber temperature
Power loss Temperature set point
Overheat Set point lock/unlock
Heater on Fahrenheit or Celcius
An audible alarm indicates overheat condition.
Heated air is circulated over the load by fans, located in each
of the two compartments. The heated air is distributed evenly
over the load, achieving convection heating. The upper compartment
is capable of holding 15 two-liter square flasks or a

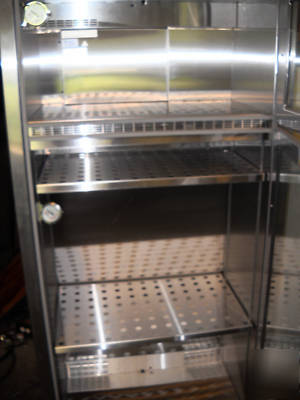

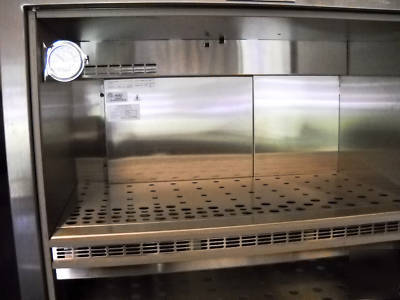

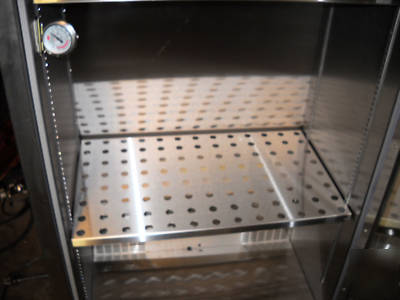

quantity of blankets. Two adjustable shelves are provided in
the lower compartment which can hold 45 two-liter square
flasks or a quantity of blankets. Once the selected temperature
is attained, it will be controlled throughout within 10 F (5.5 C)
of the selected temperature. A full load of two-liter flasks in the
upper compartment will be heated to 110 F within 8 hours or
less. In the event of a power loss, once power is restored the
unit will indicate a power loss has occurred and resume its prepower
The cabinet unit is double walled, type 304 stainless steel
construction. Insulation is provided to conserve energy and
insure that the exterior surface temperature does not exceed

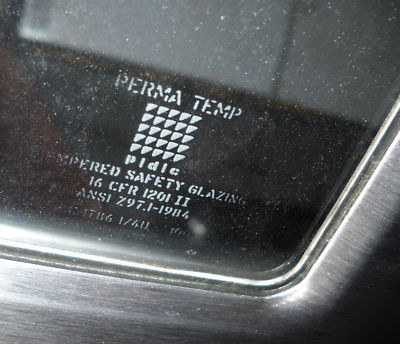

120 F (49 C). Doors are tempered glass panes framed with
type 304 stainless steel. Temperature of glass panes does not
Control components are mounted in the rear of the upper
compartment, permitting convenient service access from the
front of the unit. Similar provisions are made for easy removal
of fans, heater elements and control boards from each
compartment. Integral L.E.D. displays provide control and
heater-on information for easy serviceability.
Look-In glass doors provide visual inventory control
Large useable internal volume for storage of solution bottles
Forced air convection heating is more effective and
eliminates the need for blanket racks
Independent heat control provides flexibility of different
temperatures in each compartment
Programmable for F and C display
Supervisory Lock-In of temperature set point prevents
unauthorized changes of temperature
Non-volatile memory protects temperature settings in the
An LED display will alert operator of an interruption or power
Overheat protection will shut the heaters off and provide an
audible alarm for the operators
Adjustable shelves provided to accommodate various types
Mounting options include floor mounted on a pedestal
base, wall mounted or recessed in a wall

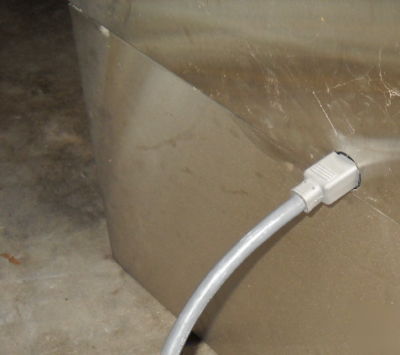

Six (6) foot power cord kit to replace standard hard wire
Extra storage shelf - 18 deep
