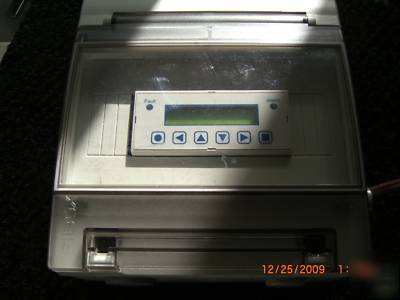

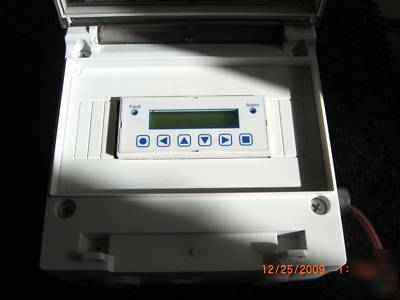

Carbon monoxide co monitor and alarm system intec
It is a high end commercial grade unit made in the USA.
This unit was intended for use in a multi unit installation but was never installed. It is in as new condition and functions perfectly.
I will include the proper 24 volt power supply as well. Can be used in a home or a commercial environment. It is very easy to install and use.
This unit retails for $1,998.00 U.S.
Below is a link to the PDF of the operating and installation instructions.
http:// /pdfs/SPC2-1110.pdf
Here are some of the Mfg. Specifications.

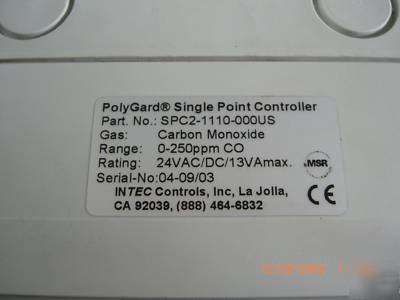

Carbon Monoxide (CO) Gas Detection and Control System
Gas monitor with built-in carbon monoxide (CO) sensor, wall-mounted,
accepts inputs from remote devices such as other gas sensors, temperature
To detect and control levels of carbon monoxide (CO) and other gases in
a wide variety of commercial and industrial applications such as vehicle
exhaust in parking structures, engine repair shops, equipment rooms and
ventilation systems, etc. The controller can interface via binary outputs and
up to (2) 4-20 mA signals with any compatible electronic analog control,
DDC/PLC control or automation system.
One (1) built-in CO electrochemical
sensor, gas specific, long life
Three (3) remote analog inputs,
Two (2) analog outputs, 4-20 mA
- Selectable for low, high or averaging

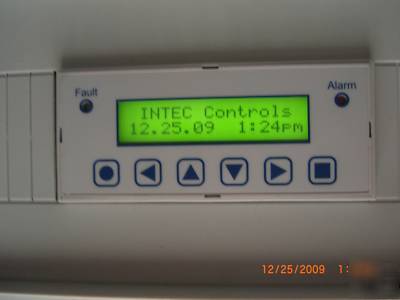

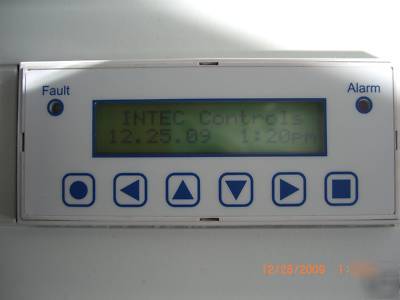

Liquid Crystal Display (LCD)
Power supply 24 VAC/VDC, -15%/+20%,
50/60 Hz, auto-resettable fuse
Power consumption 13 VA (0.5 A), w/max sensor
RF/EMI protected 4.0 W @ 3 ft. (1 m) radiated
Gas detected Carbon monoxide (CO)
Sensor element Electrochemical, diffusion
Stability & resolution 0.5 ppm of reading
Long term output drift < 0.4% signal loss/month
Sensor life expectancy 5 years, normal operating
Sensor coverage 5,000 sq.ft., max. 10,000 sq.ft.
Mounting height 5 to 6 ft. (1.5 to 1.8 m) above floor
General Five-stage (S1 to S5) control,
assignable up to five (5) binary/
Low-med-high-fault/fail-horn*,
(* = horn/audible alarm built-in
Analog inputs Three (3) 4-20 mA, for additional
Analog reading Current and mean (average)
Stage level / setpoint Field adjustable over full range,
switching differential Selectable for each sensor point
Digital inputs Four (4), each can be individually
assigned to any relay (R1...R5).
remote audio/visual alarm reset
Accepts combination of toxic or
combustible gases, refrigerants,
temperature or humidity remote
Simple menu-driven programming
w/ status LEDs Five (5) SPDT, 8A
contact resistance 100 m , max.
- each stage level (S1-S5) Assignable to any relay
- sensor fail-safe Assignable to any stage level
Time delay switching Selectable for make and brake
of each sensor point (SP1 to SP4)
Analog output Two (2) independent 4-20 mA
Audible alarm 90 db, enabled or disabled,
selectable; assignable to stage
Alarm acknowledgement Menu-driven and system reset
Keypad type Refer to illustration keypad user
Digital display Liquid Crystal Display (LCD),
two lines, 16 characters per line,
- unit display Menu selectable, per sensor;
- working temperature 23 F to 104 F (-5 C to 40 C)
- storage temperature 23 F to 86 F (-5 C to 30 C)
- humidity 15 to 95% RH, non-condensing
- working pressure Atmospheric 10%
- material Polycarbonate, impact
- conformity UL Type 1, UL508 standards
- color Light gray, smoked gray for cover
- installation Wall (surface) mounted

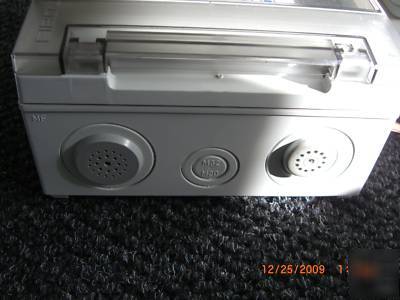

Cable entry 5 holes for 1/2 in. conduit,
Wire connection Terminal blocks,
Push-on connect and screw type
- input Min. 22 AWG (0.34 mm2)
- output Min. 24 AWG (0.25 mm2)
- relays (R1-R5) UL Recognized, E5610 & E108658
- enclosure (panel) UL Listed, E75645
Warranty Two years material and
