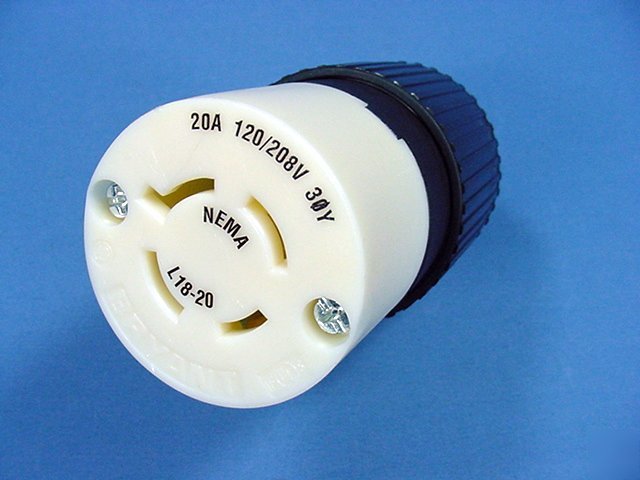

Bryant L18-20 locking connector plug 30A 120/208V 3øy
Bryant L18-20 Locking Connector Plug 30A 120/208V 3 Y
Hubbell/Bryant 71820NC locking connector plug. Tech-Spec Industrial Grade, NEMA L18-20R, 4-pole, 4-wire, non-grounding, rated 20A 120/208V 3 phase Y. Cord capacity: .465-1.150" diameter. Each is individually packaged; packaging may differ from photo. Features include:
* Heavy duty .062" copper alloy contact plate provides excellent conductivity. High performance copper-alloy contacts have excellent spring retention properties and provide superior contact pressure. Clamp-type terminals have .078" over-sized clamp nut with undercut for secure retention of conductor
* Transparent terminal cover with extended "teardrop" wiring pockets - provides good visibility and proper wire separation in the assembled plug
* Internal self-centering Triple-Gripper cord grip with "radius teeth" design provides secure cord retention
* Amperage, voltage, and NEMA line number imprinted on face for easy identification
* Face and body have contrasting key for easy assembly
* Hand grip features wide-rib, non-slip design with industrial black matte finish
* Impact/chemical-resistant toughened nylon construction
* EDPM dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
* Tapered cover eliminates snagging
* Captive combination Phillips/slotted terminal and assembly screws come backed out for easy assembly
Click here to see matching L18-20 plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #BRY71820NC-EA; 7.00 Ounces)
