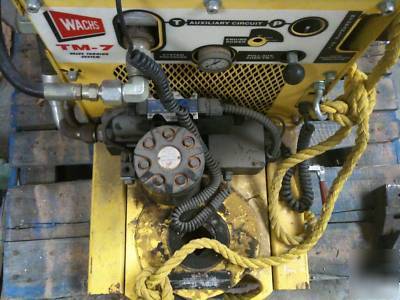

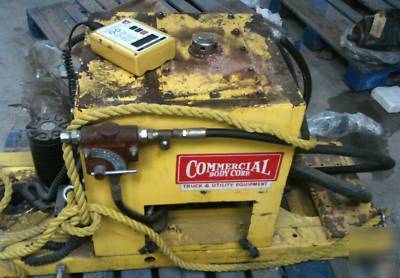

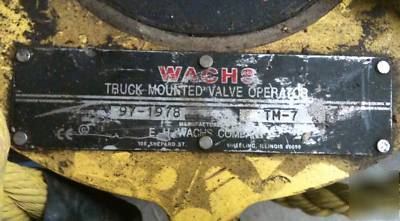

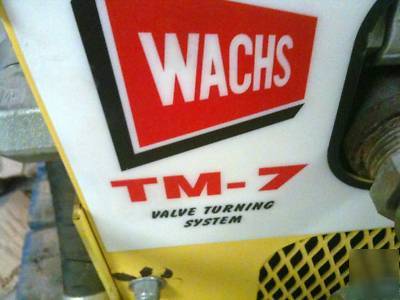

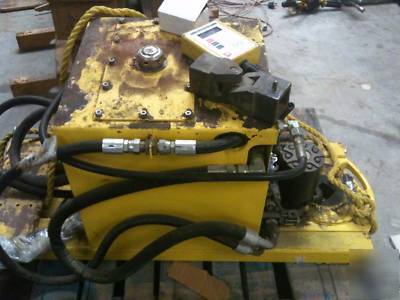

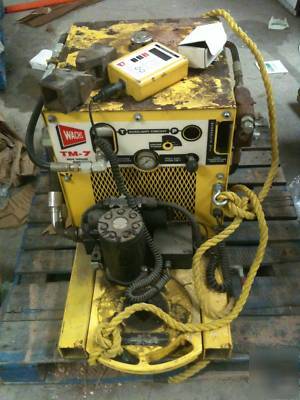

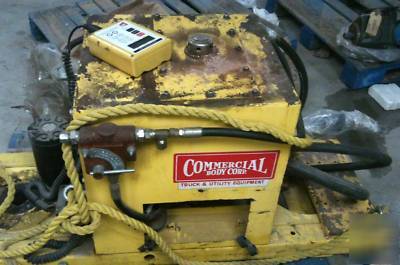

Used wachs tm-7 hydraulic power unit system
TM-7 allows an operator to turn all valves from 4" and up and exercise even the most stubborn valves safely.

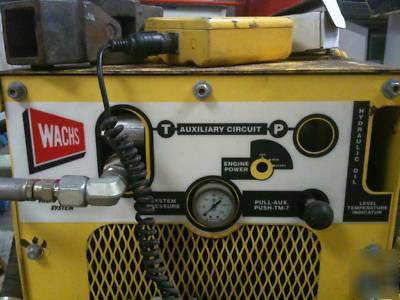

An integrated Hydraulic Tool Circuit to operate auxiliary maintenance tools is standard.
Single hydraulic motor and drive gear housing offers compact design, increased efficiency and an unobstructed work area for valve key insertion.

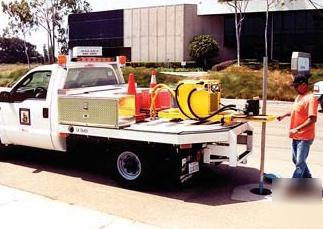

TM-7 frame assembly is designed to quickly bed or top mount. Accommodating most truck beds.
Modular design to accommodate your unique needs now and in the future.
" Smooth Slide" bearing track rail system utilizes a rigid rail locking mechanism, lockable at any extended location. It makes pull out easy and valve alignment fast.

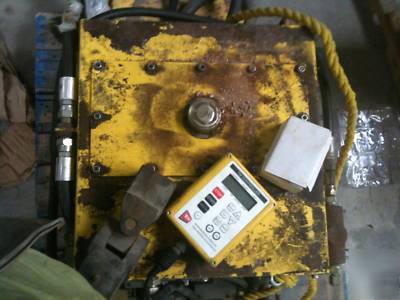

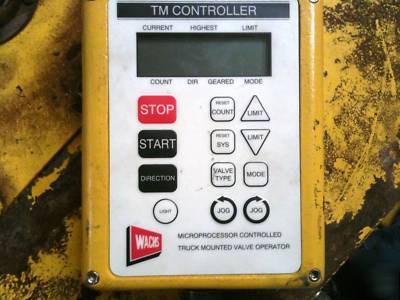

Automated controller features the "Wachs Automatic Exercising Procedure." Gives even an inexperienced operator the ability to turn valves safely by automatically controlling torque and turning direction.
Manual control offers adjustable torque control setting with automatic cut off when turning load exceeds selected torque.
Remote operating pendant keeps operator out of traffic flow and inclement weather.
Standard (Class II with cooler option)
Width: 19" (482.6 mm), Height: 13" (330.2 mm)
3" (76.2 mm) Square tube module design
Mounted to bed or across bed side panels
Powder Coated, Safety Yellow
375 lbs. (170 kgs) Varies with configuration
1500 lb.-ft. @ 2000 psi, 6-68 rpm @ 2-20 gpm, 27 rpm @ 8 gpm
1500 lb.-ft. @ 2000 psi, 4-27 rpm @ 600-3600 engine rpm
4 hour fuel capacity @ 300 ft.-lb and 2800 rpm
2500 lb.-ft. @ 2000 psi, 4-62 rpm @ 2-30 gpm, 25 rpm @ 13 gpm
2500 lb.-ft. @ 2000 psi, 23 rpm @ 12 gpm
8 hour fuel capacity @ 450 ft.-lb and 2600 rpm
