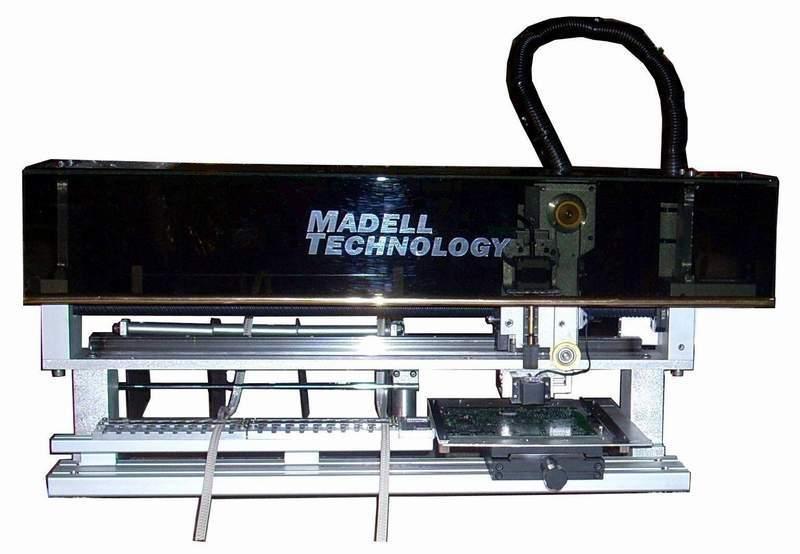

Semi-auto pick place machine sm-100 with split vision
Madell SM-100 table top semi-automatic pick and place machine with split vision. Great tool for R&D, prototype, small production, education.
The SM-100 is our newest product of low cost SMT assembly equipment. It is the result of innovation and extensive experience in both manual and automatic pick and place machines. Designed for easy of operation and fast placement, the SM-100 differs dramatically from other semi-automatic machines on the market in the sense that more jobs are left for the machine to perform.
* Automatic X,Z and rotation movements with stepper motors, manual Y movement
* Split vision for fine pitch components and BGA. With split vision, both the circuit board and part ont the vacuum nozzle can be seen on the same screen. Accurate alignment is achieved by adjusting the X,Y,Z and rotation while watching the split vision video either on the computer or on a seperate monitor.
* Programmable feeders and parts
* Teaching video camera, no computer vision function
* Max. feeder capacity: 20 SX 8mm feeders
* Free feeders: ten SX 8mm tape feeders included
* Low cost additional feeders.
* Same software as our automatic pick and place machine, easy to upgrade with your business expansion
* 12 month full factory warranty
* 110V AC 60Hz, or 220 V AC, 50Hz
* Machine customization available
* The machine can be operated with two hands and one foot: left hand advances tapes, right hand adjusts the part and PCB, the foot controls pick and place; The split vision is used to see where the part is picked up and placed
* Program the feeders and parts in the software
* Start the pick and place process in the software
* Machine moves to the programmed feeder location , lowers the nozzle, waits operator to confirm before picking up the part
* Operator pulls the tape to expose one part, confirms the pick up by stepping on the foot switch
* Machine picks up the part, rotates if necessary, moves to the programmed location on the PCB and lowers the nozzle, waits for the operator to adjust the part and confirm before placing the part
* While watching the split vision, the operator adjusts the part by: moving the precision table for fine Y adjustment or pulling the PCB board directly for big Y steps; adjust X and rotation with the software
* Operator steps on the foot switch to place the part
* Repeat the above steps until the programmed pick and place process is finished
* Windows XP or Vista computer
