National instruments pxi-8252 ieee 1394 interface card

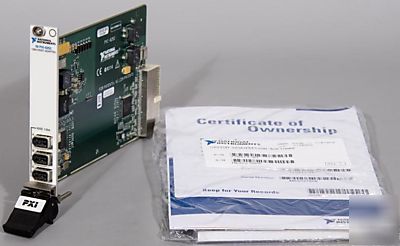

NEW National Instruments PXI-8252 IEEE-1394 Interface Module with Vision Acquisition Software
The unit is brand new but we did not get any cables with it. It is guaranteed to work.
List Price is: $729.00 NEW From National Instruments
Link to the Datasheet: National Instruments PXI-8252 IEEE 1394 Interface Module Datasheet
* Expandable with IEEE 1394 hubs
* Native driver for Windows 2000/XP/Me/98
The National Instruments PXI-8252 is an IEEE 1394a interface module for PXI, based on the Texas Instruments TSB12LV26 and TSB41AB3. The NI PXI-8252 adds three high-performance IEEE 1394a ports to any PXI system. It is OHCI v1.0 compliant and has native support in Windows 2000/XP/Me/98.
Dimensions: 16.0 x 10.0 cm (6.3 x 3.9 in.), 3U
PXI: 32-bit, Universal Signaling
PXI Vio: 3.3 V / 5 V (Universal), 33 MHz
1394: IEEE 1394a-1995 S100, S200, S400 transfer rates, OHCI v1.0 software interface. Actual 1394 transfer rates are system dependent.
Theoretical Maximum: 315 mA at 3.3 V, 1.8 A at 5.0 V, 400 mA at 12 V
1394: 12 V 10%, 12 W total, can be divided among 1394 ports
Ambient Temperature Range: 0 to 55 C (Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)
Operating Relative Humidity Range: 10 to 90%, noncondensing (Tested in accordance with IEC-60068-2-56)
Altitude: 2,000 m (at 25 C ambient temperature)
Ambient Temperature Range: -20 to 70 C (Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)
Storage Relative Humidity: 5 to 95%, noncondensing (Tested in accordance with IEC-60068-2-56)
Operational Shock: 30 g peak, half-sine, 11 ms pulse (Tested in accordance with IEC-60068-2-27. Test profile developed in accordance with MIL-PRF-28800F)
Operating: 5 to 500 Hz, 0.3 grms
Nonoperating: 5 to 500 Hz, 2.4 grms (Tested in accordance with IEC-60068-2-64. Nonoperating test profile exceeds the requirements of MIL-PRF-28800F, Class 3)
This producde is designed to meet the requirements of the following standards of safety for electrical equipment, control, and laboratory use:
Electromagnetic Compatibility:
Emissions: EN 55011 Class A at 10 m FCC Part 15A above 1 GHz
Immunity: EN 61326:1997 + A2:2001, Table 1
EMC/EMI: CE, C-Tick, and FCC Part 15 (Class A) Compliant
This produce meets the essential requirements of applicable European Directives, as amended for CE marking, as follows:
* Low-Voltage Directive (safety) 73/23/EEC
* Electromagnetic Compatibility Directive (EMC) 89/336/EEC
* Picture 5 - Card's Serial Number Tag
* Picture 6 - Acquisition Software Serial Number Tag
