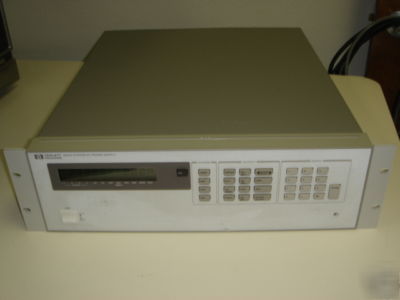

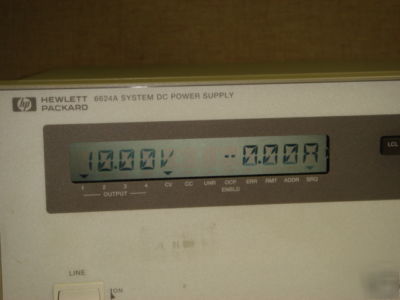

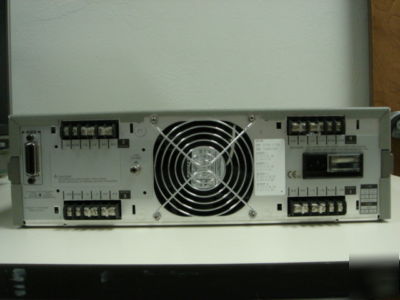

Hp model 6624A dc power supply 4 outputs
The 6624A Power Supply is a 40 W, 4 outputs, GPIB system power supply that has up to four linear low noise outputs combined with a built in GPIB interface.
Measure voltage and current read-back over the GPIB
Two outputs can be connected in parallel or in series
Automatic selection of operating voltage and current range Programmable over-voltage and over-current protection
Self-test occurs at power-on from a GPIB command
Electronic calibration via GPIB
SCPI (Standard Comments for Programming Instruments)

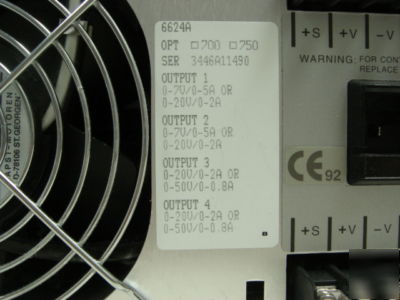

2 @Low volts:0-7 V, 0-5 A or High Volts: 0-20 V, 0-2 A
2@Low volts: 0-20 V, 0-2 A or High Volts: 0-50 V, 0-.8 A
