> 120"X42"Y24"zcincinnati 5-axis vertcnc honeycomb proflr
120"X42"Y24"zcincinnati 5-axis vertcnc honeycomb proflr

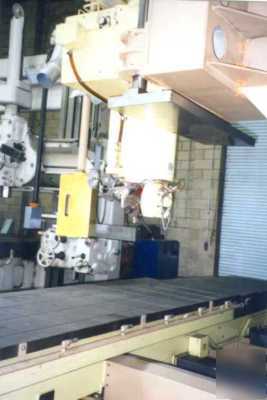

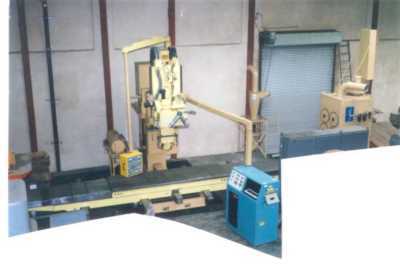

ONE Preowned CINCINNATI 5-Axes Vertical CNC Honeycomb Profiler, Bed Type
MDL. 20V, S/N 87-416Q779-1, NEW 1987
NUMBER OF SPINDLES .. 1
SPEEDS INFINITELY VARIABLE 7,200 24,000 RPM
VERTICAL TRAVEL ON SLIDE ... (Z-AXIS) 24

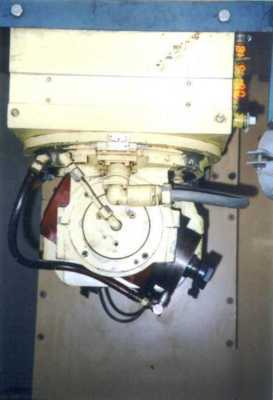

ROTATES (B-AXIS) TILT 110 DEGREES TO 10 DEGREEES

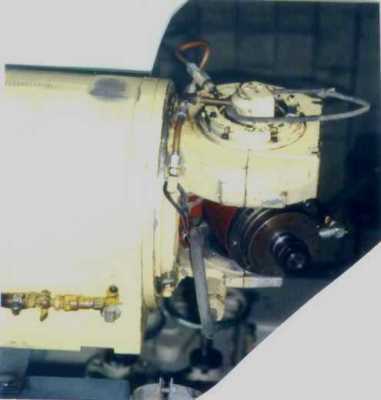

ROTATES (C-AXIS) TWIST +/- 190 DEGREES

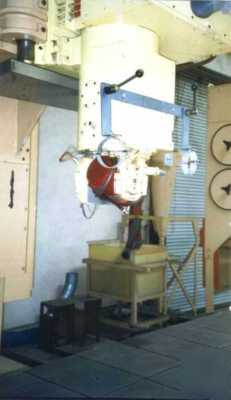

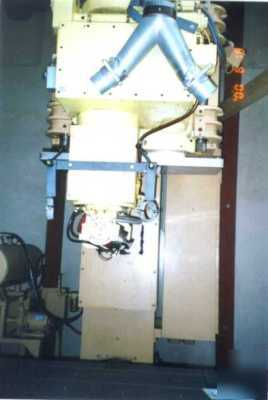

SPINDLE CARRIER AUTO TILT TYPE
SPINDLE COOLING . .. GLYCOL W/ CHILLER
WORK HEIGHT SPINDLE TO TABLE TOP:
SPINDLE PIVOT POINT TO SPINDLE NOSE .. 7.5
SPINDLE PIVOT POINT TO WORK SURFACE 5.75 MAX, 29.75 MAX
TABLE: T-SLOTTED, (2) TABLE OUTBOARD SUPPORTS
MOUNTING SURFACE W X L . 40 X 120
LONGITUDINAL TRAVEL (X-AXIS) 120
TRANSVERSE TRAVEL (Y-AXIS) . . 42
FEEDRATES: INFINITELY VARIABLE
X-AXIS (LONGITUDINAL), Y-AXIS (TRANSVERSE) AND Z-AXIS (VERTICAL SPINDLE):
B & C AXIS.. 4 - 400 IPM MANUAL,
RAPID TRAVERSE, X, Y, Z-AXES . 12 - 1200 IPM MANUAL, NC CONTROL 0.10 1200 IPM
MOTOR DRIVES: * MOTORS WIRED 460 VOLTS, 3-PHASE *
SPINDLE . . 10 HP, 230/460 VOLTS
FEED DRIVES (ALL AXIS) . .. SERVO MOTORS
CONTROLS: *REMOTE LOW VOLTAGE CONTROL*
ACRAMATIC CNC #CIP0/220B MINI-COMPUTER (CIRCULAR INTERPOLATION IN/MILLIMETERS XYZ COORDINATES). CIRCULAR PATH XY PLANE. XZ PLAIN, OR YZ PLANE). (HELICAL INTERPOLATION 3-DIMENSIONAL CIRCULAR INTERPOLATION). (HELICAL ARCS INTERPOLATED ALONG A CYLINDER PARALLEL TO ANY ONE OF THE 3-LINEAR AXES). LINEAR INTERPOLATION IN/METRIC, CONTROL STATES TOTAL OF (6) OPERATIONAL CONDITIONS RS232 PORT.
(1) ADDITIONAL COMPUTER HAS BEEN ADDED TO DOWNLOAD LARGER FILES AND ADD TO STORAGE CAPACITY.
PENDENT CONTROL W/ FUNCTION LOCK,. MASTER START/STOP. EMERGENCY STOP. CONSOL REMOTE. SELECT AXIS. FEED INCREMENTS FEED RATE. OVERRIDE. CNC ON. GRID ALIGN. X&Y AXIS INTERCHANGE. TOOL CHANGE RESET. CYCLE STOP. FEED HOLD. POWER FEED. ZERO SHIFT. ON, OVERRIDE. START/STOP BUTTONS. LOAD METER. SPEED DIAL, RPM METER. MIST LUBE CONTROL. DUST COLLECTOR CONTROL CW/CCW BUTTONS, DIRECTION CCW/CW, START/STOP, CNC-PC CONTROL PANEL. KEYBOARD AND CRT. (1) SPINDLE COOLING UNIT. SPINDLE LUBRICATION SYSTEM. (1) DUST COLLECTION UNIT

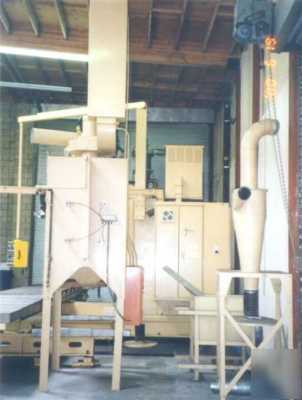

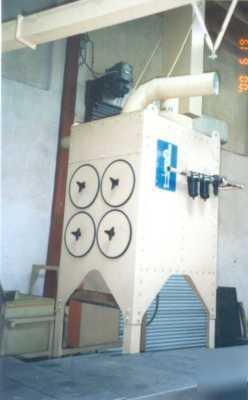

(1) TORIT 19 CYCLONE DUST COLLECTOR SER 225757, TORIT DOWN FLOW BAGGER.
PRICE: ON SITE, (LOS ANGELES, CA) . .. . $165,000.00
