Cyber research pccdas 1612 12 bit 16 ch pcmcia a/d card

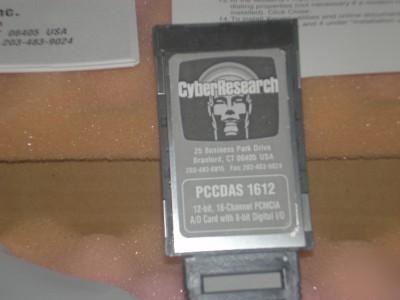

As Pictured: Cyber Research PCCDAS 1612 12 bit 16 Ch PCMCIA A/D Card with 8 bit Digital I/O
You can accurately measure process variables such as pressure, temperature, and flow in the field with our PCCDAS 1600 series cards. The 12-bit PCCDAS 1612 card offers programmable input ranges and sample rates up to 100kHz. The PCCDAS 1616 is a 16-bit 200kHz card.
The PCCDAS 1612 and PCCDAS 1616 cards provide either 16 single-ended or 8 differential inputs channels. The analog input range is fully programmable. The heart of the PCCDAS 1612 is a 12-bit A/D converter. Analog signals are routed to the converter via either an 8:1 differential multiplexor or a 16:1 single-ended multiplexor controlled by a register on the card. The PCCDAS 1616 card is based on a 16-bit, high-resolution A/D converter.
8 digital I/O lines act as simple on/off inputs or outputs, providing a means to sense and control discrete events.
