Agilent / hp 83494A optical clock recovery module

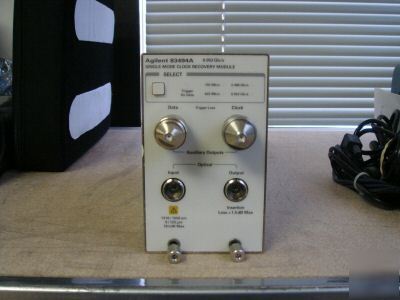

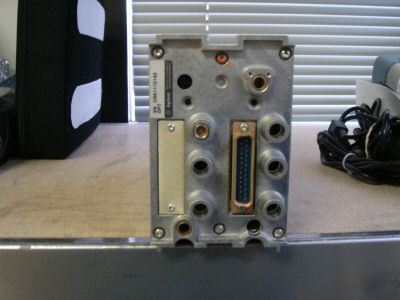

AGILENT / HP 83494A Optical clock recovery module
The 83494A single-mode clock recovery plug-in module is an integrated solution for high-speed digital transmission test. When a separate trigger source is not available, the 83494A can derive a timing reference directly from the signal under test. The 83494A can synchronize to all SONET/SDH transmission rates through 10 Gb/s with exceptional jitter performance that ensures an accurate display of the test waveform.
* Wavelength range: 1200-1600 nm
* Data rates: 0.155/0.622/2.488/9.953 Gb/s or 0.155/0.622/2.488/10.3125 Gb/s or 0.155/0.622/2.488/2.666/10.709 Gb/s
* PLL bandwidth: 90 kHz (internal triggering), 4 to 5 MHz (external output)
* Input power: -14 to +3 dBm (<= 2.488 Gb/s), -8 to +3 dBm (>= 9.953 Gb/s)
