> 2PC 1X 10X passive oscilloscope probes kit rod tip lead

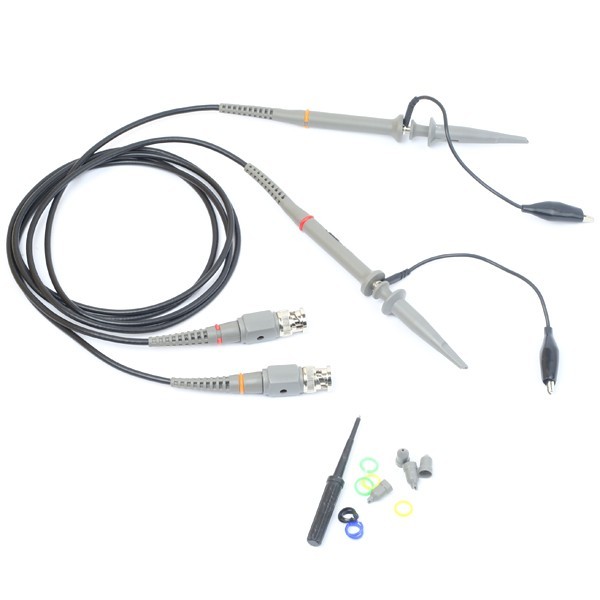

2PC 1X 10X passive oscilloscope probes kit rod tip lead
2pc 1x 10x Passive Oscilloscope Probes Kit Rod Tip Lead
To compensate the 60MHz probe, connect it to a 1kHz rectangle signal source (which most oscillosopes provide) and adjust it with the included screwdriver until you can see a clear rectangle signal on your measurement screen.
This complete probe kit includes:
* Input Resistance: 1M :10M
* Input Capacitance: 1X:85pF-115pF, 10X:14.5pF-17.5pF
* Compensation Range: 15pF-35pF
* Bandwith: DC-4MHz, DC-100MHz
* Working Voltage:1X:<150V DC, 10X:<300V DC
* Operating Temperature: -10 C - +50 C
* Non-operating Temperature: -20 C - +75 C
* Humidity: 85% (relative humidity)
