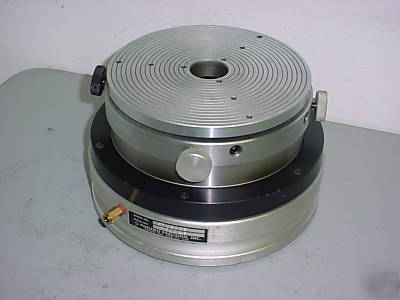

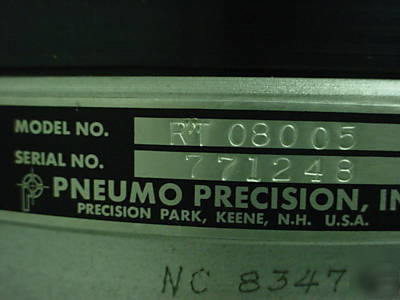

Pneumo-precision 8" air bearing rotary table
* Radial Accuracy - .125 m (5 ")
* Axial Accuracy - .075 m (3 ")
* Coning Accuracy - .025 m 1.0 "/inch
* Nominal Working Pressure - 14.44pa (50 psig)
* Air Consumption - 2.6m 3/hr (1.5 scfm)
* Worktable Tapped Holes - (9) M-5
* Worktable Center Hole - 39=8mm (1.5") diameter
* Height - 110mm (4.312") 200mm (7.875" with motor drive)
* Weight - 24kg (52.5 pounds) balanced
* Load Capacity (carrying) - 227kg (500 pounds) balanced
* Moment Loading - 7.9N-m/arc sec (70in. lb/arc sec.)

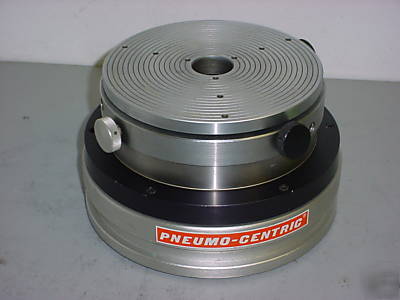

Tilt centering table mounts onto 203mm rotary worktable. This table eases the alignment of workpieces. The flatness is within .0032mm (.00125") radial; .00127mm (.000,500") circular. It has +/- 1.27mm (+/-.050") centering adjustment through two differential screw centerings controls.
